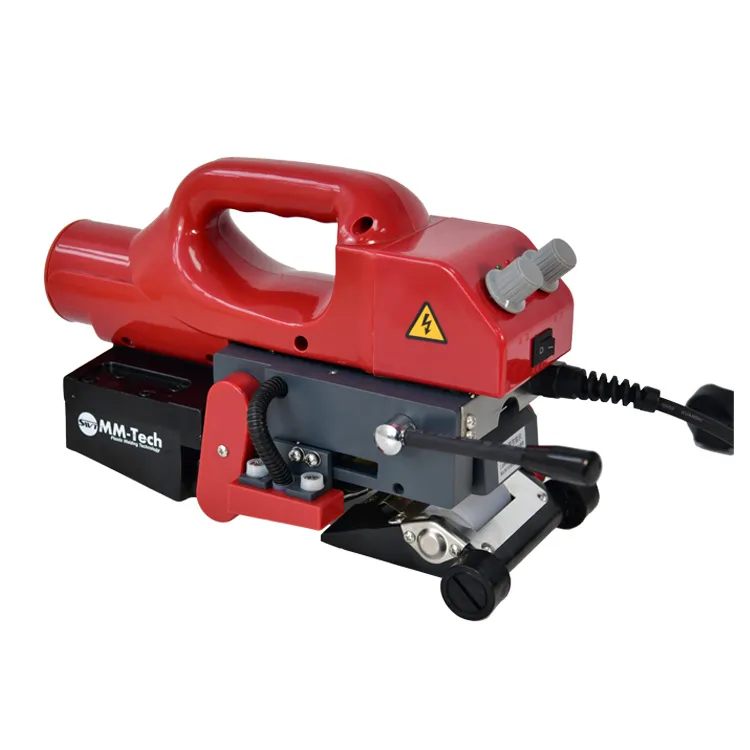

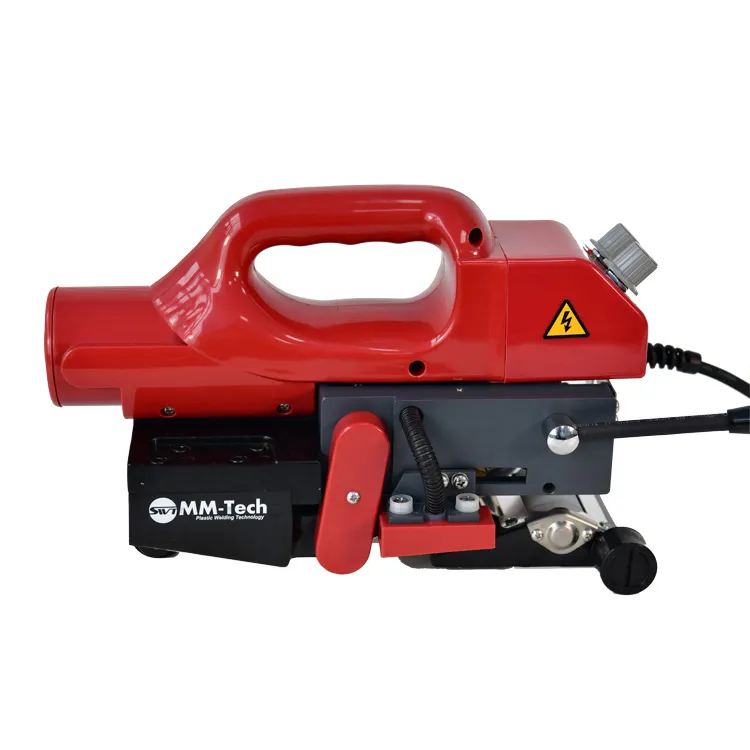

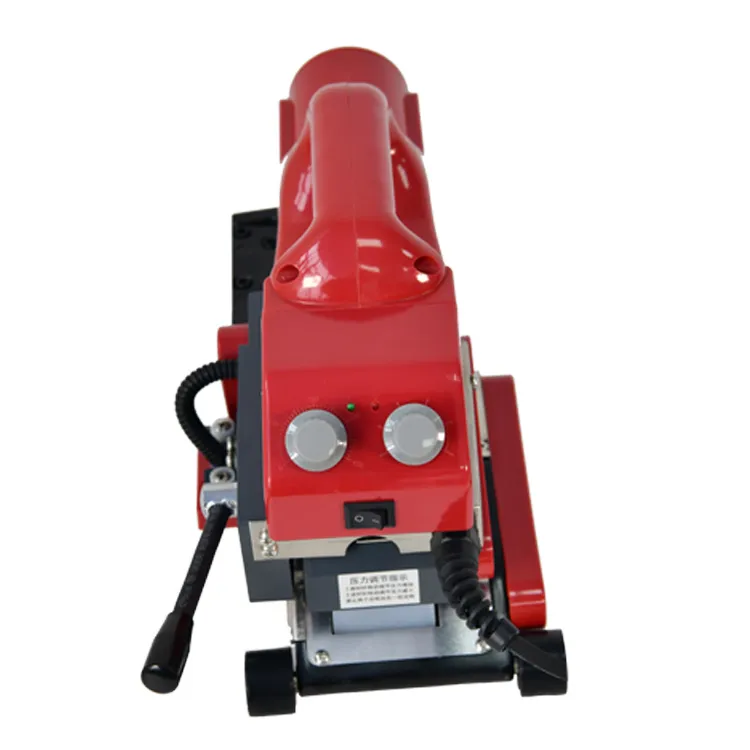

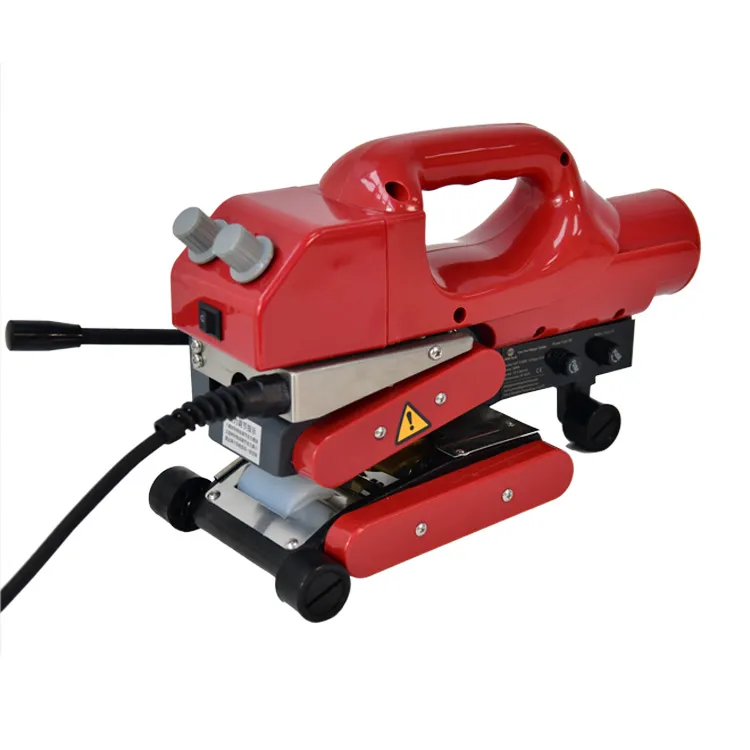

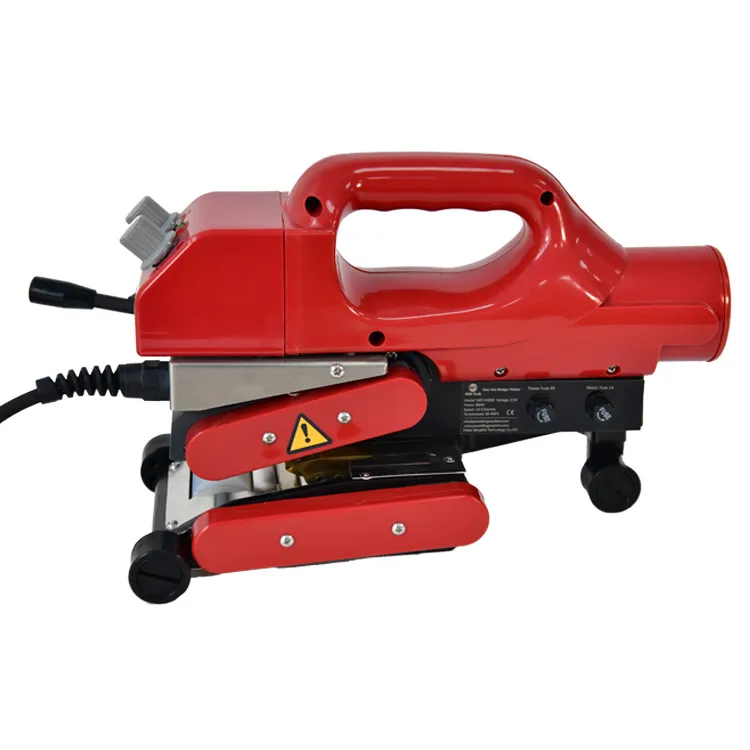

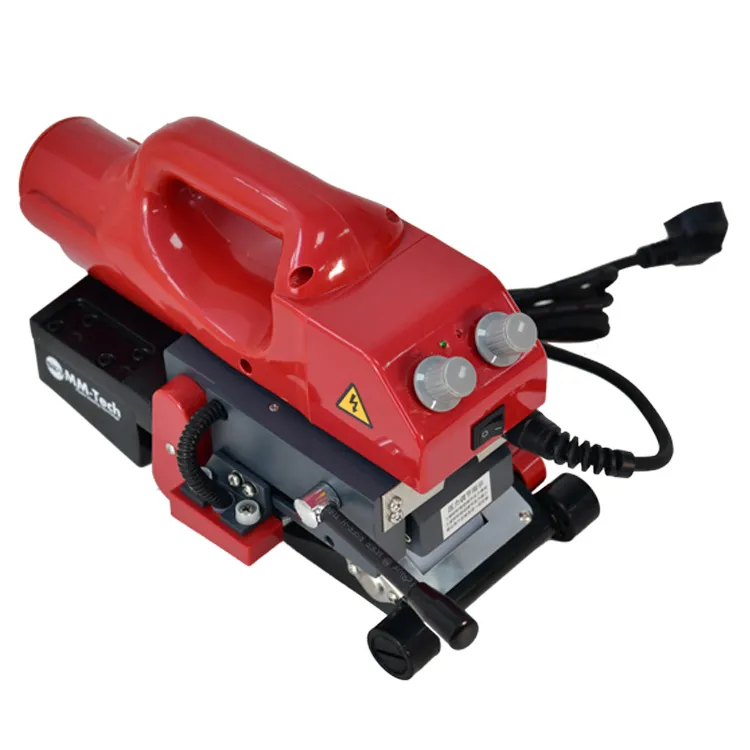

SWT-NS800 Geomembrane Welder

SWT series geomembrane welding machine is a new product of MM-Tech, which supports welding 0.2-1.5mm Geo-membrane and is suitable for a variety of materials, such as HDPE, LDPE, PVC, PP, and other hot melt plastic materials.

Product Details

Contact Now

Product Details

Product Video

Application

SWT-NS800 hot wedge machine is suitable for Geo-technical projects such as landfills, tailings treatment, road anti-seepage treatment, as well as water conservancy projects such as breeding ponds, dam anti-seepage treatment, and reservoirs.

Parameter Table

Input voltage	230V/120V
Frequency	50/60HZ
Power	800W/1100W
Overlap width	10 cm
Welding speed	0.5-5 m/min
Temperature	50-450℃
Seam strength	≥85% Original
Seam width	12.5 mm*2, Interior Cavity 12 mm
Welding material thickness	0.2-1.5 mm
Feeding method	From two sides
Digital display	No(800) / Temperature & Speed(800D)
G./N. Weight	9.0 Kg/5.0 Kg
Packing size	370 mm (L) × 240 mm (W) × 285 mm (H)

Product Features

① Standardized Production

Molding process, precise installation, stable machine quality and long service life.

② Control System

Accurate control and powerful protection.

③ Hot-Wedge

Customized metal hot-wedge with high power heating elements which higher heating frequency and longer life.

④ Pressure Roller

Imported silicone pressure wheel, soft, heat-resistant and wear-resistant (geomembrane welding with a thickness of more than 1.0 mm is equipped with a special steel pressure wheel).

⑤ Pressure Adjustment

The machine pressure can be adjusted according to the material and thickness.

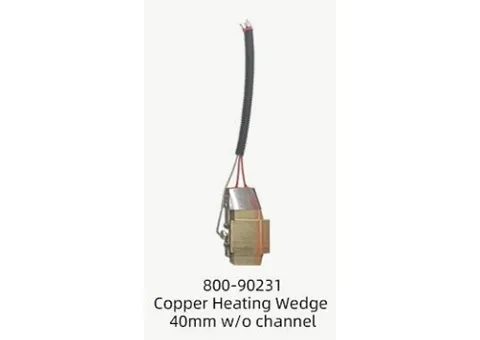

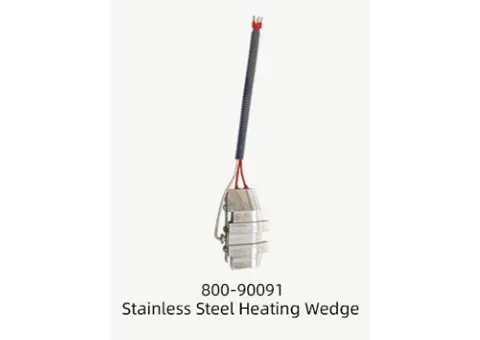

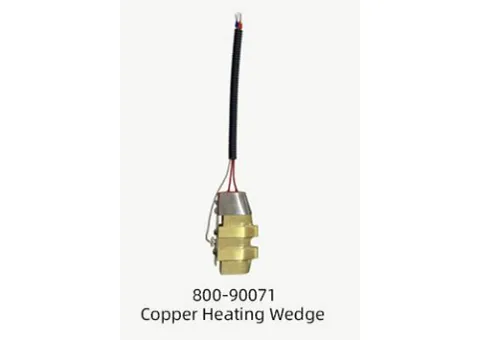

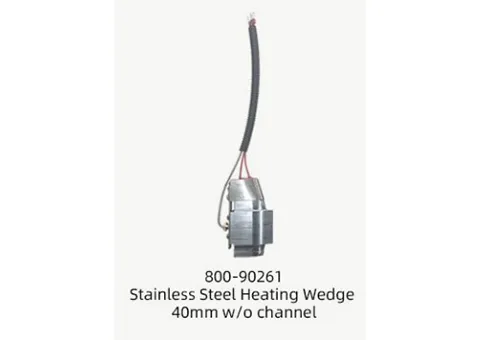

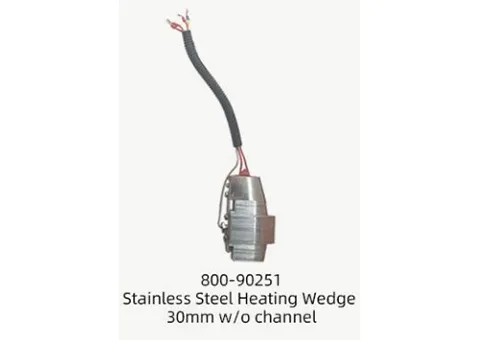

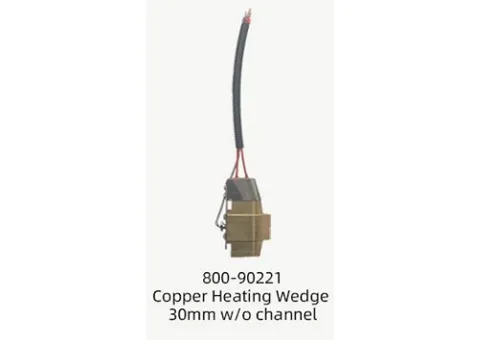

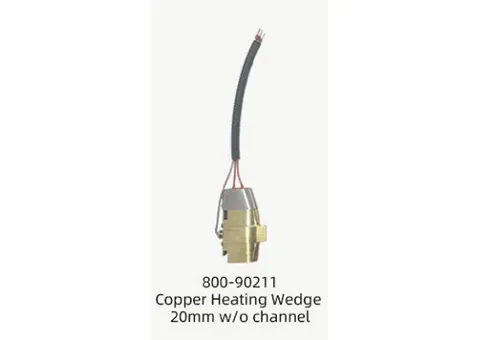

Accessory List

Weldable Materials

hdpe geomembrane welding

wedge welders

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

HDPE Geomembrane Welding FAQ

What Materials Can It Weld?

HDPE, LDPE, PVC, EVA, and other geomembranes.

Is It Easy To Use?

Yes, it has an automatic control system for simple operation.

How Is Weld Quality Ensured？

Precise control of temperature, pressure, and speed ensures strong, waterproof seams.

Where Is It Used？

Common in landfills, reservoirs, mining, and tunnel waterproofing.

How To Maintain It？

Clean the heating plate regularly and check circuits and air pressure.
