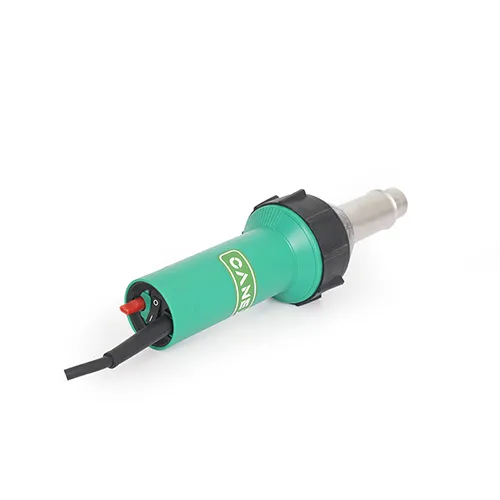

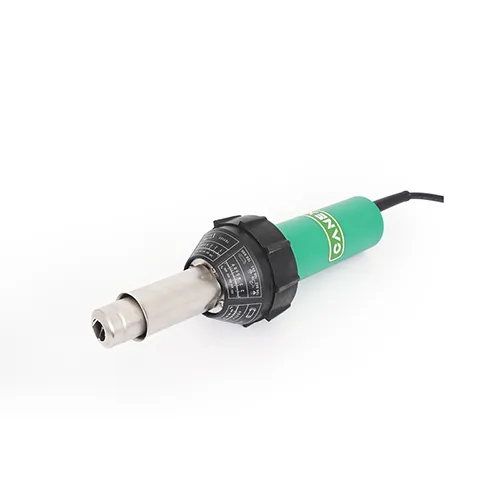

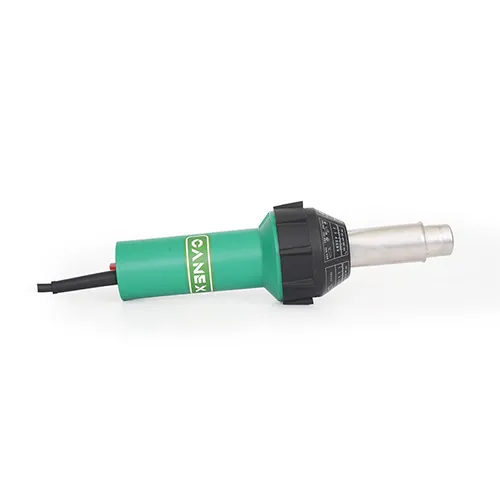

CX1600S Hot Air Welding Machine

The hot air gun CX1600S is suitable for welding various thermoplastic materials such as PE, PP, PVC, PVDF, TPO, etc. and are widely used in various industrial applications such as floor welding, membrane waterproofing welding, sheet welding, pipe welding etc.

Product Details

Contact Now

Product Details

Application

Hot air gun CX1600S is a multi-functional hot air welding gun, widely used in plastic welding, membrane repair and other thermoplastic material processing scenarios. Hot air gun is widely used in various fields, such as geomembrane welding, sheet welding and pipe welding, especially in the automotive film industry, where hot air guns play an important role.

Parameter Table

Voltage	220V
Frequency	50/60Hz
Power	1600W
Temp Adjusted	20-620℃ Adjustable Continuously
Air Volume	Max 180L/min
Air Pressure	2600Pa
Noise	≤65 Db
Application	PE/PP/PVC/ABS/PVDF

Product Features

① Welding Nozzles
Suitable for various welding nozzles to meet different needs.

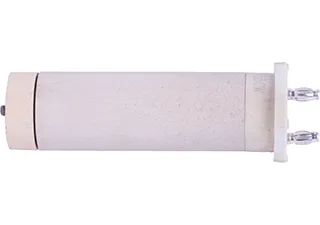

② Heating Element
Import heating elements can make it work for a long time under high temperature.
③ Temperature Control System
Protect heating elements burned to stop heating when temperature is higher than secure working temperature.
④ Motor
The handle drive motor adopts a foreign brand motor and can work for a long time.

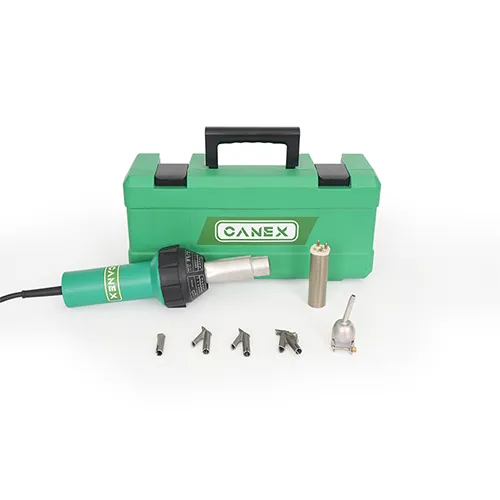

Parts List

1600W/220V heating element
1600W/110V heating element
20mm slot nozzle

40mm slot nozzle
20 mm 120°angled nozzle
20 mm 90°angled nozzle

5mm tubular nozzle
5mm round speed nozzle
5*7 triangle speed nozzle

tacking nozzle

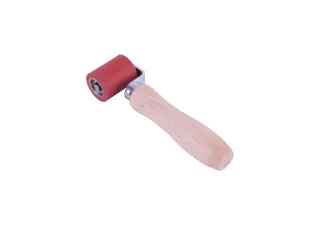

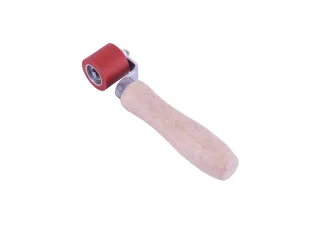

20mm silica roller
40mm silica roller

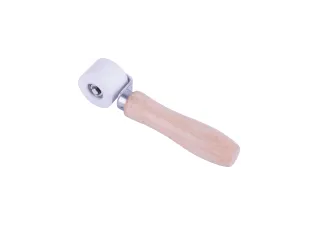

20mm teflon roller

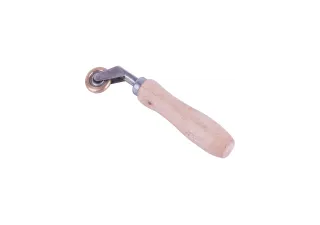

Brass roller

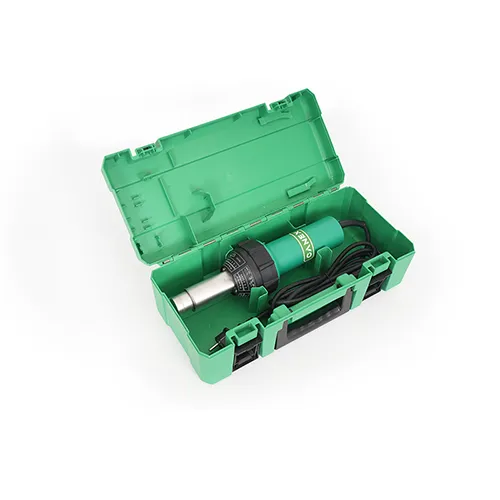

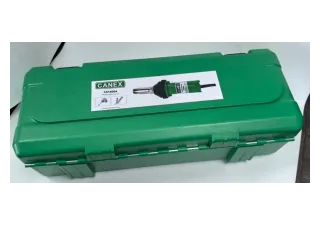

Green plastic carry box

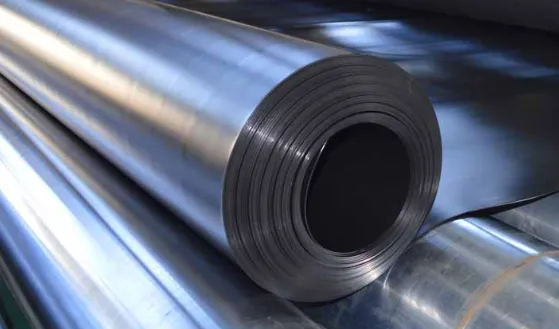

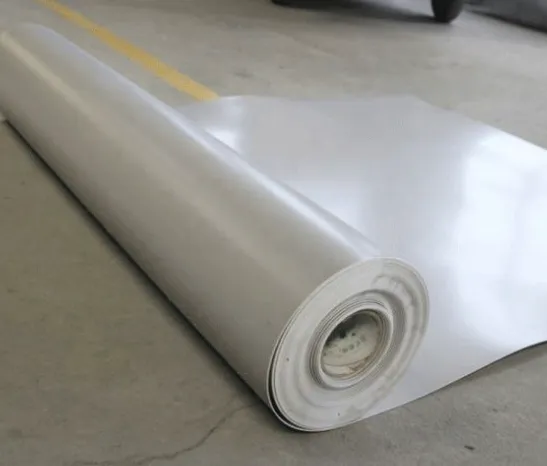

Weldable Materials

PE (HDPE, LDPE)
PP
PVC
