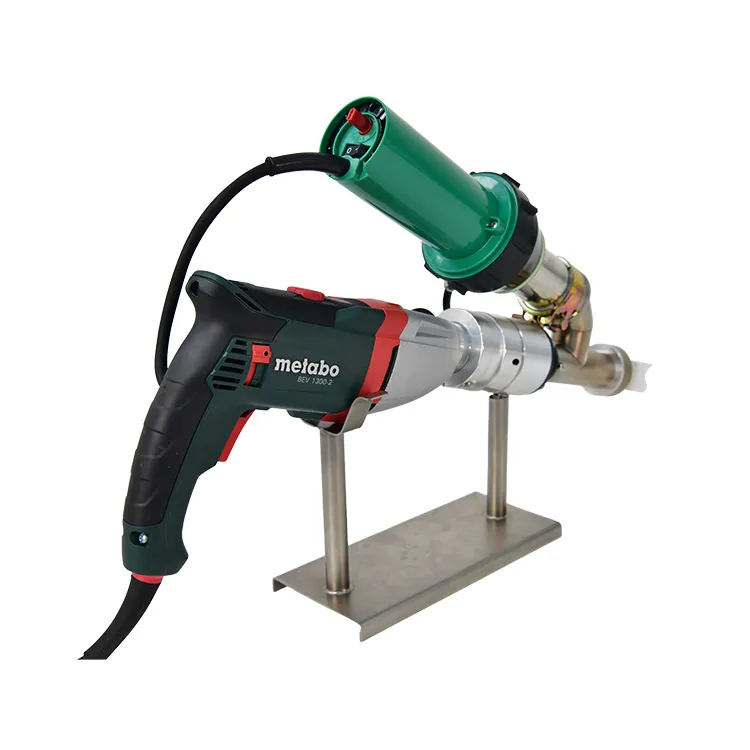

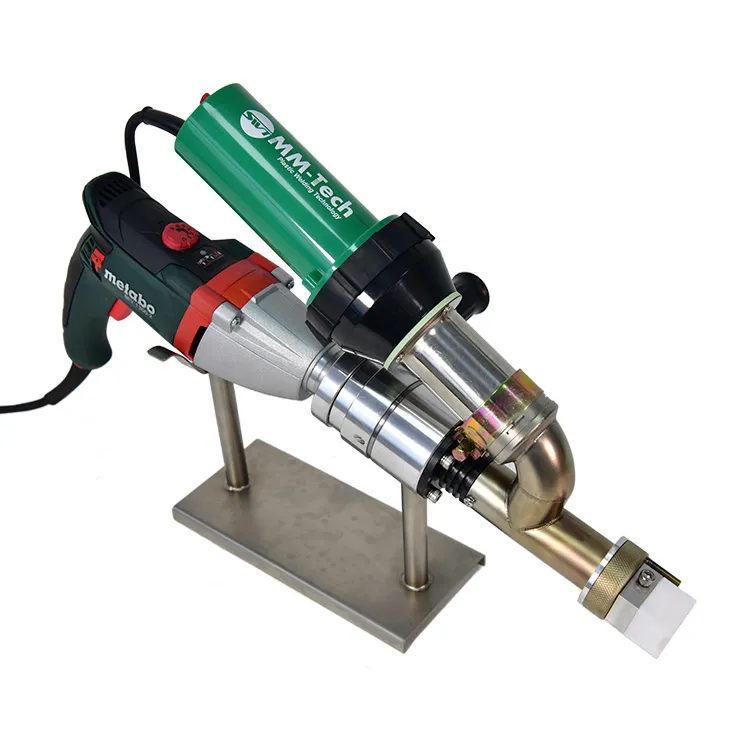

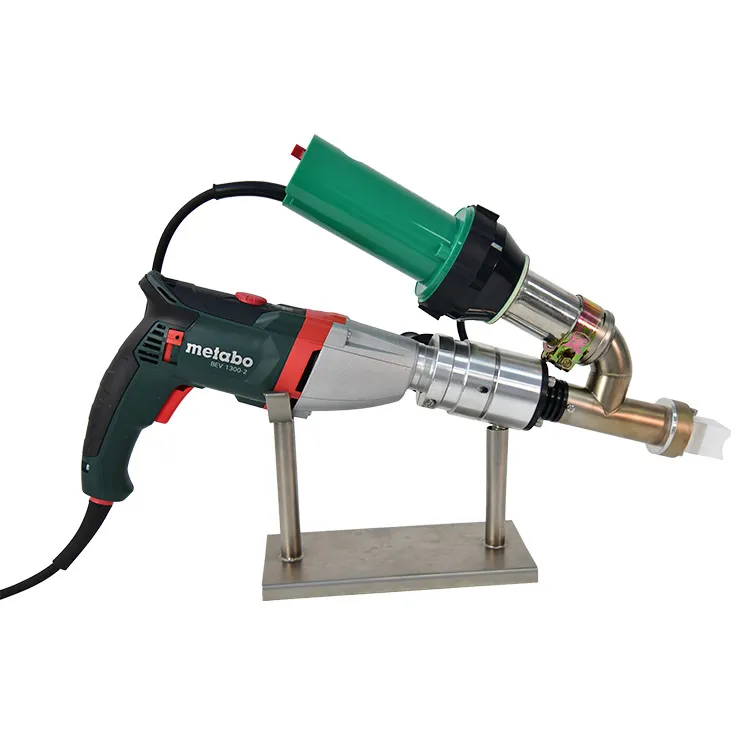

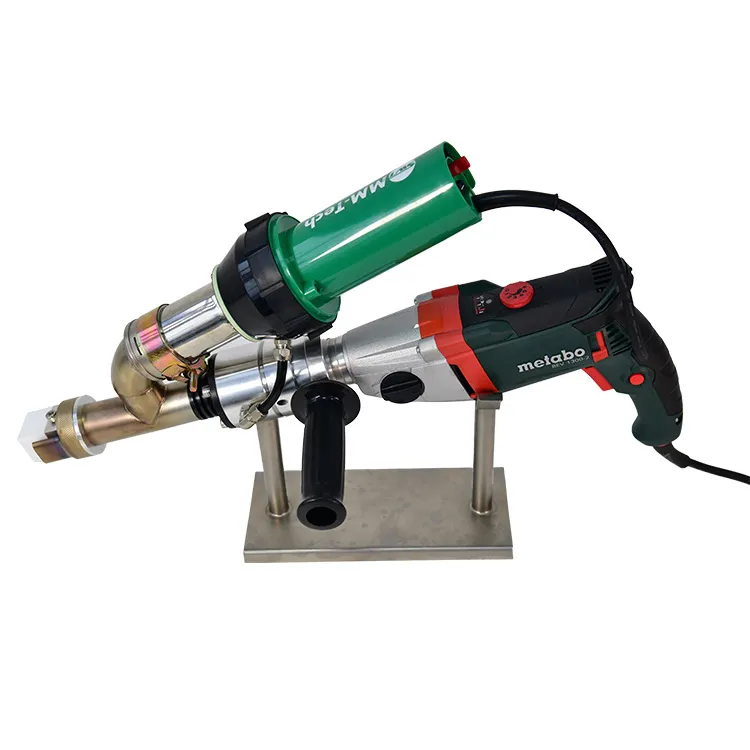

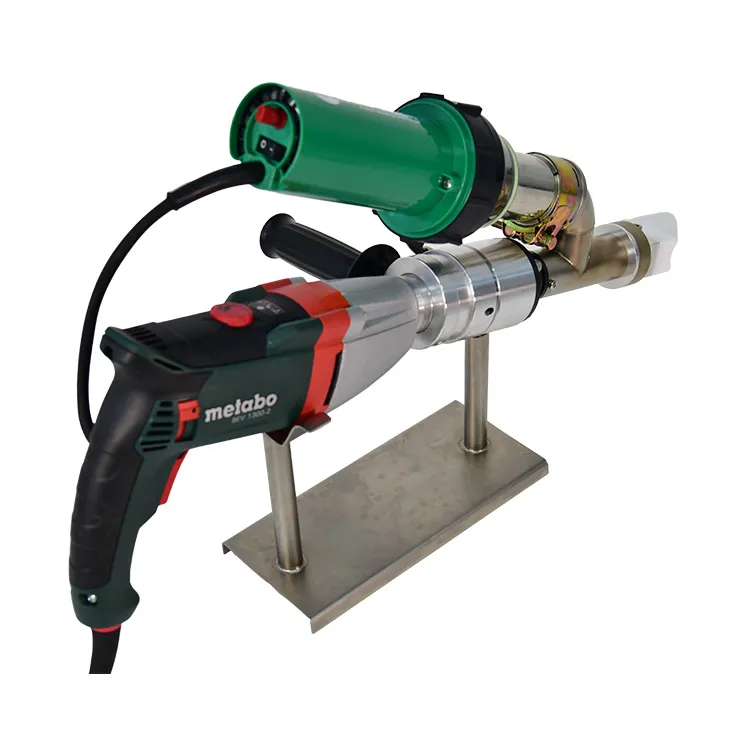

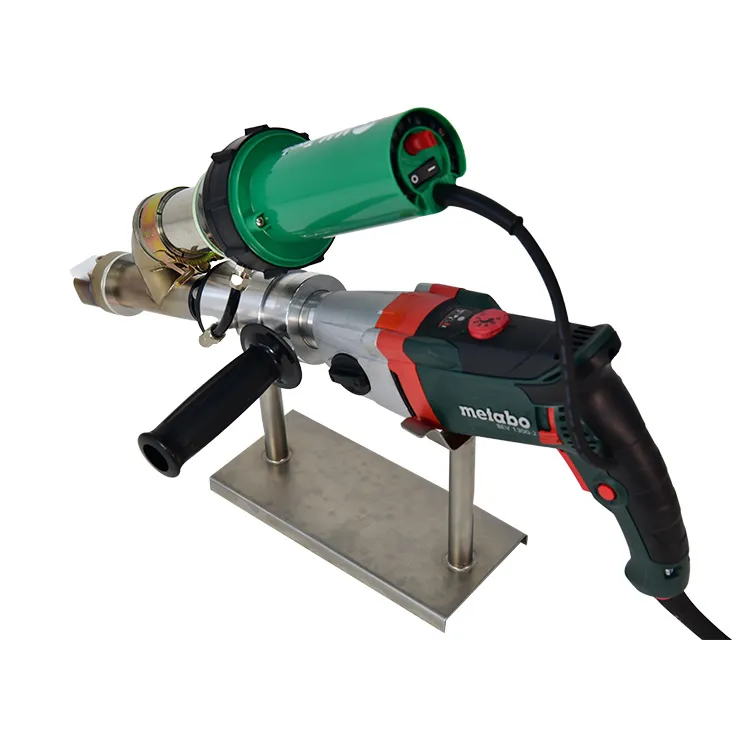

SWT-NS610E Hand Extrusion Welding Machine

The SWT-NS610E Hand Extrusion Welder is particularly suitable for welding thermoplastic materials such as HDPE, LDPE, PP, PVDF, and so on. It is not restricted by external sites and external conditions during use, making it flexible to use in workshops and construction sites.

Product Details

Contact Now

Product Details

Product Video

Application

The SWT-NS610E extruder is a highly versatile and powerful tool designed for a wide range of applications. It is suitable for welding, repairing, and reinforcing plastic water pipes, membrane structures, and tanks. This extruder is widely used in various industries, including aquaculture, landfills, tailings treatment, tunnel anti-seepage treatment, and other application fields such as plastic pipe repair connection, geomembrane repair, electroplating chemical square trough, and more.

Parameter Table

Input voltage	230V
Frequency	50/60Hz
Extruding power	1300W
Hot air power	3400W
Welding rod heater power	Don’t Support Digital Display
Air temperature	20-620℃
Extruding temperature	Don’t Support Digital Display
Extruding volume	2.5-3 Kg/h
Welding rod diameter	φ3, 4 mm
Driving motor	METABO
Materials thickness	1-10 mm
G./N.Weight	14.0 Kg/7 Kg

Product Features

①3400W powerful heating system

②360°rotatable welding head or 2 different angle welding head.

③1300W Germany METABO extruding auger.

④Uniquely developed feeding and extrusion system, smoother extrusion and longer life.

Accessory List

Overlapping Welding Shoe
Right Angle Welding Shoe
Round Welding Shoe

Blank Welding Shoe
UBL30 Overlapping Welding Shoe
V8/10 Welding Shoe

K8/10 Right Angle Welding Shoe
CL14 Round Welding Shoe
K5/6 Right Angle Welding Shoe

Weldable Materials

PE
PP
PVDF

extrusion welder

extrusion welder for sale

extrusion welding hdpe pipe

welding extruder

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Extruder Welding Machine

What Is an Extruder Welding Machine?

A device that welds thermoplastics by extruding heated plastic.

What Materials Can It Weld?

Suitable for HDPE, PP, PVC, and other thermoplastics.

Where Is It Used?

Common in plastic fabrication, pipeline repair, and tank construction.

What Are Its Key Features?

Adjustable temperature, multiple nozzle options, and ergonomic design.

How to Maintain It?

Clean regularly, check heating elements, and store in a dry place.
