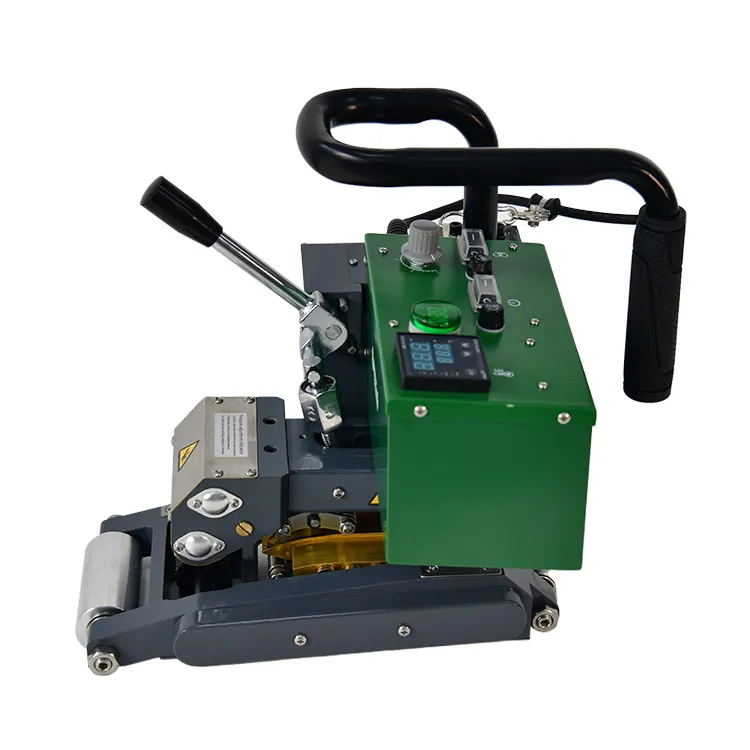

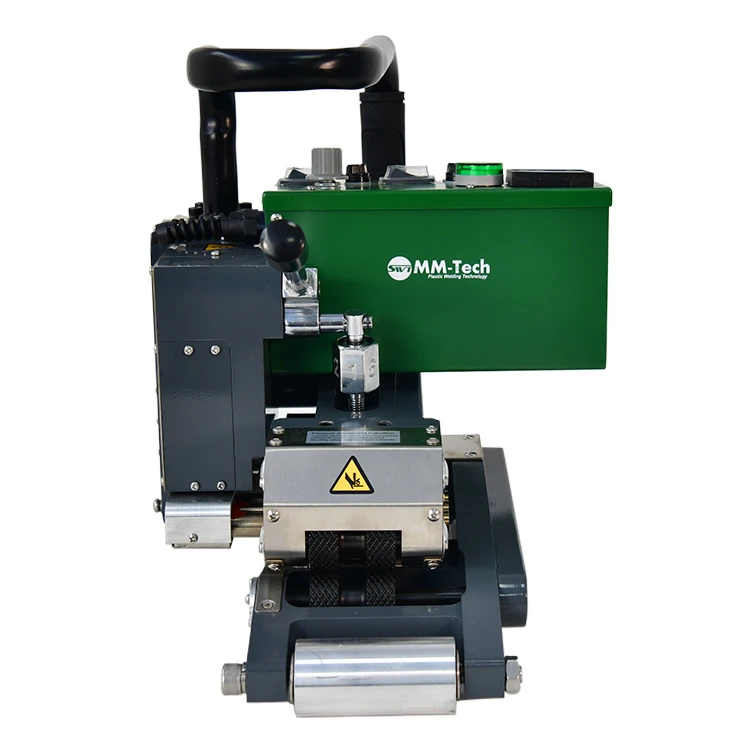

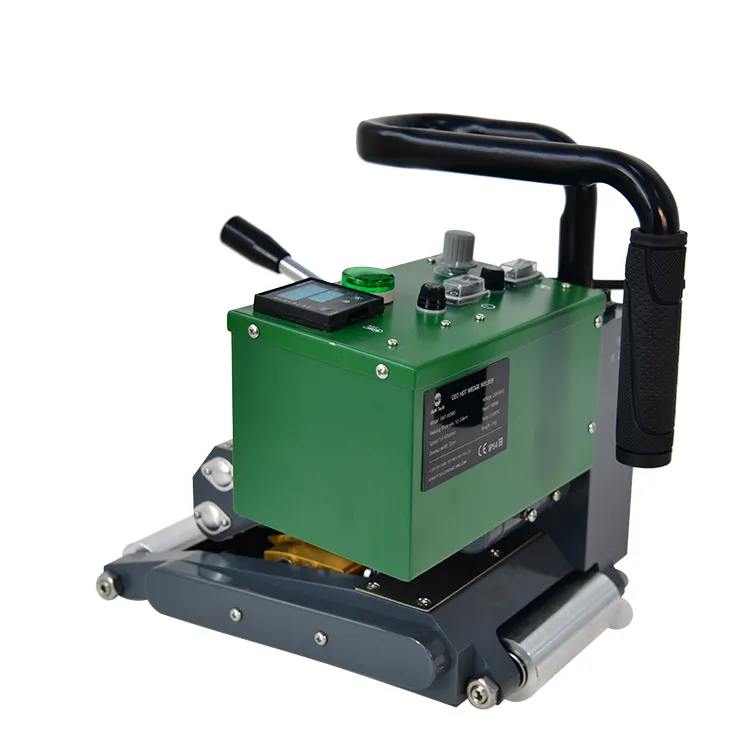

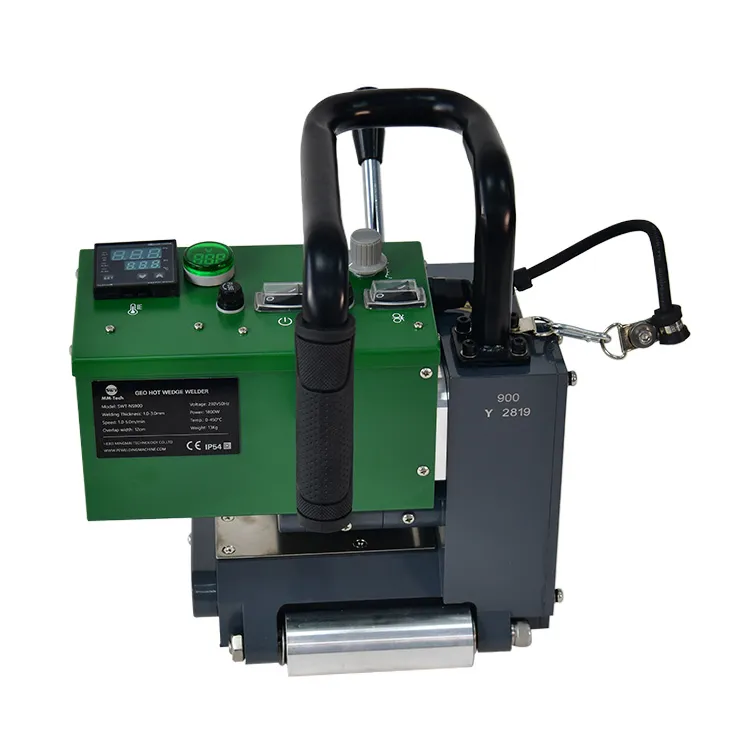

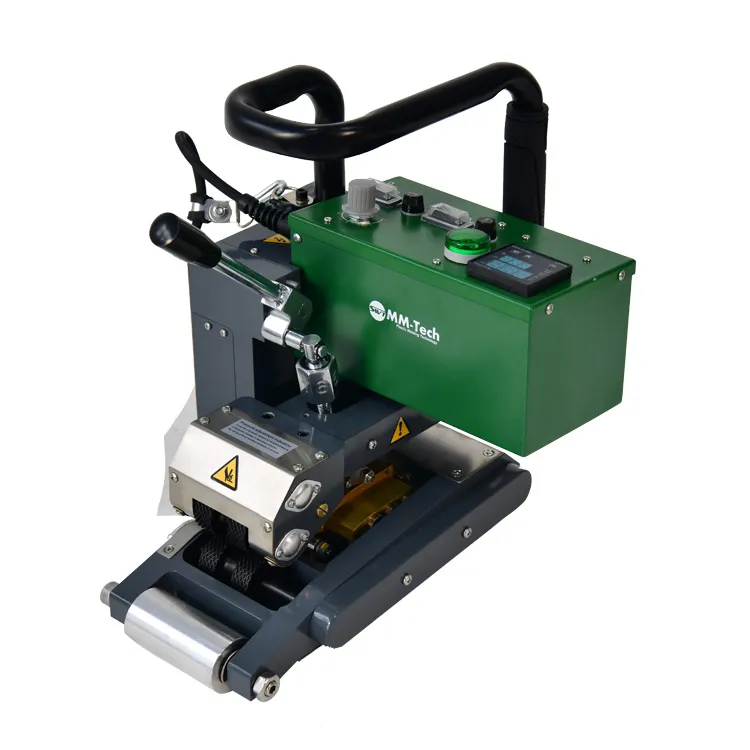

SWT-NS900 Hot Wedge Machine

SWT-NS900 Hot Wedge Machine

The SWT-NS900 is a high-power, 1800W Geomembrane welding machine designed to handle a wide range of applications. This powerful machine is capable of welding membranes with varying thicknesses, from 1 to 3 mm, ensuring versatility in its use. It is specifically engineered to work with a variety of materials, including PP, HDPE, LDPE, PVC, EVA, and other hot melt plastic materials, etc.

Product Details

Contact Now

Product Details

Product Video

Application

The Hot wedge machine is mainly used in Geo-technical engineering fields such as landfills, biogas digester, mining treatment, anti-seepage treatment of highway and railway tunnels, as well as aquaculture, reservoir dams, agricultural irrigation and other applications, etc.

Parameter Table

Input voltage	230V/120V
Frequency	50/60HZ
Power	1800W/1650W
Overlap width	12 cm
Welding speed	1-5 m/min
Temperature	50-450℃
Seam strength	≥85% Original
Seam width	15 mm*2, Interior Cavity 15 mm
Welding material thickness	1-3 mm
Feeding material method	From two sides
Digital display	Temperature & Speed
G./N.weight	19.5 Kg/13.0 Kg
Packing size	495mm (L) × 370 mm (W) × 400 mm (H)

Product Features

① Control System

The machine adopts advanced digital display screen, precise control and perfect protection function.

② Motor System

The high-power and high-torque motor cooperates with the dual precision drive mechanism to achieve steep welding, and the machine’s welding speed is adjustable.

③ Rack Structure

Advance “T” style jib design and pressure regulation structure.

④ Pressure Roller

Equipped with special stainless steel pressing roller, which have strong pressure, are non-slip and durable.

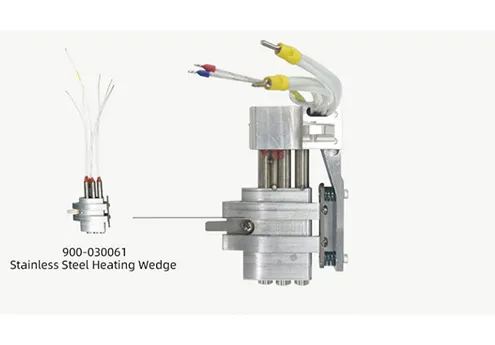

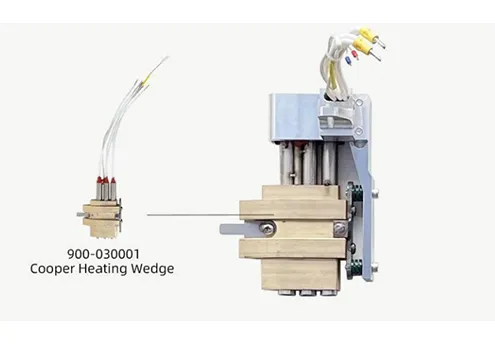

⑤ Heating System

Customized metal hot wedge with powerful heating element which higher hating frequency and longer life.

Accessory List

Weldable Materials

geomembrane welding machine price

pond liner welder

wedge welder

wedge welder for sale

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ: SWT-NS900/900D Hot Wedge Machine

What Is The Swt-Ns900/900d Hot Wedge Machine?

It is a welding machine designed for joining thermoplastic materials like HDPE and PVC.

What Materials Can It Weld?

It can weld HDPE, PVC, and geomembranes commonly used in construction and waterproofing.

What Are The Key Features Of The Swt-Ns900/900d?

It offers adjustable speed, precise temperature control, and strong, reliable welding.

Where Is The Swt-Ns900/900d Used?

Primarily used in construction, geosynthetics, and environmental sealing applications.

How Do I Maintain The Swt-Ns900/900d?

Regular cleaning, inspecting the wedge, and checking settings for optimal performance.
