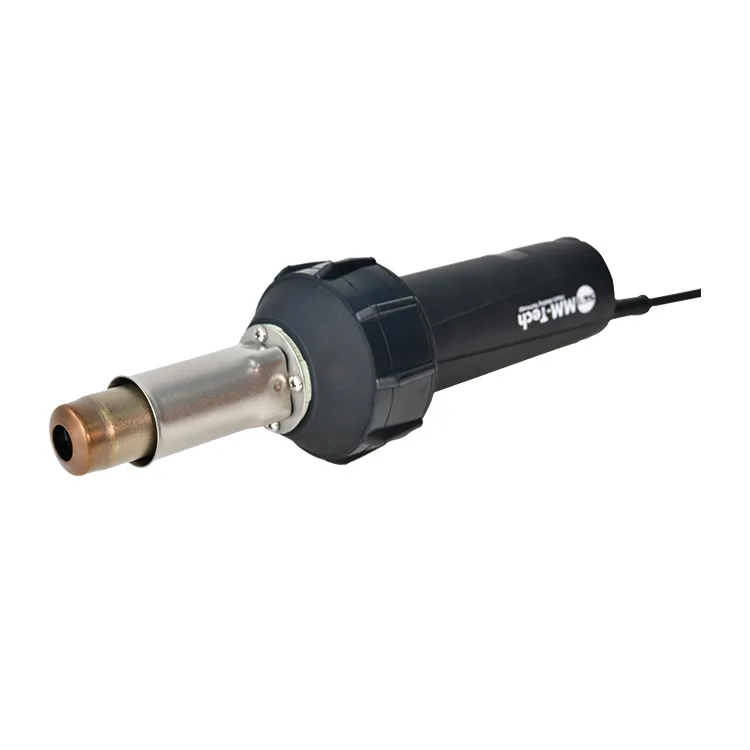

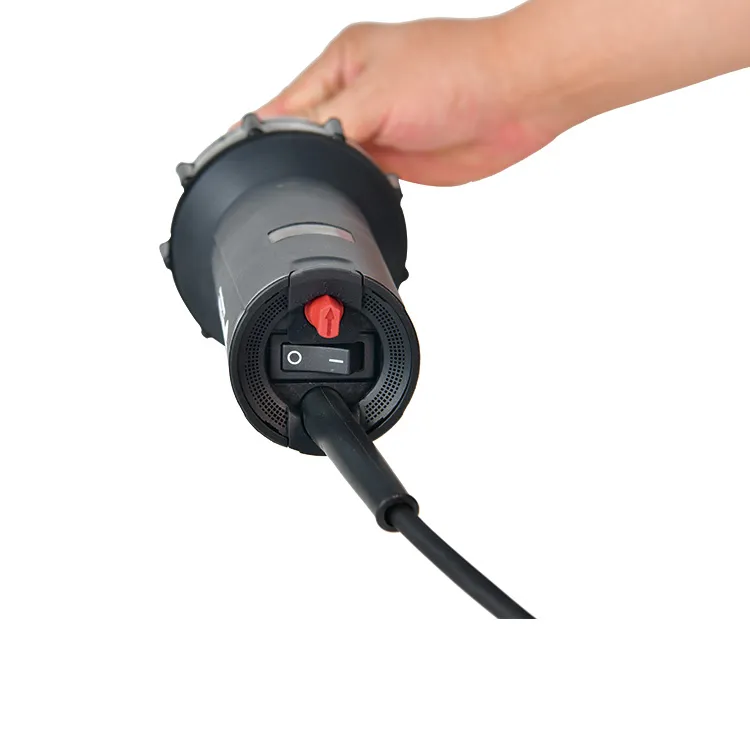

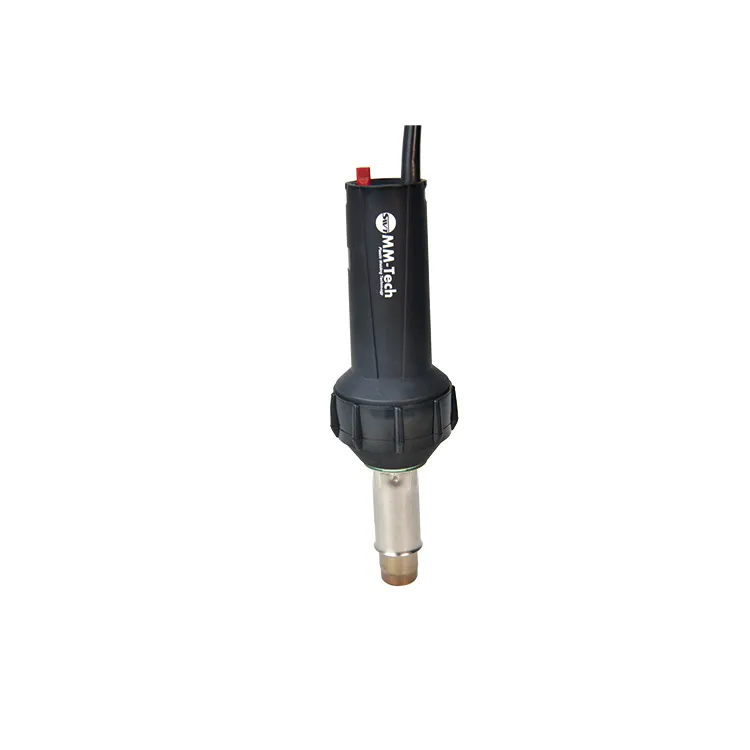

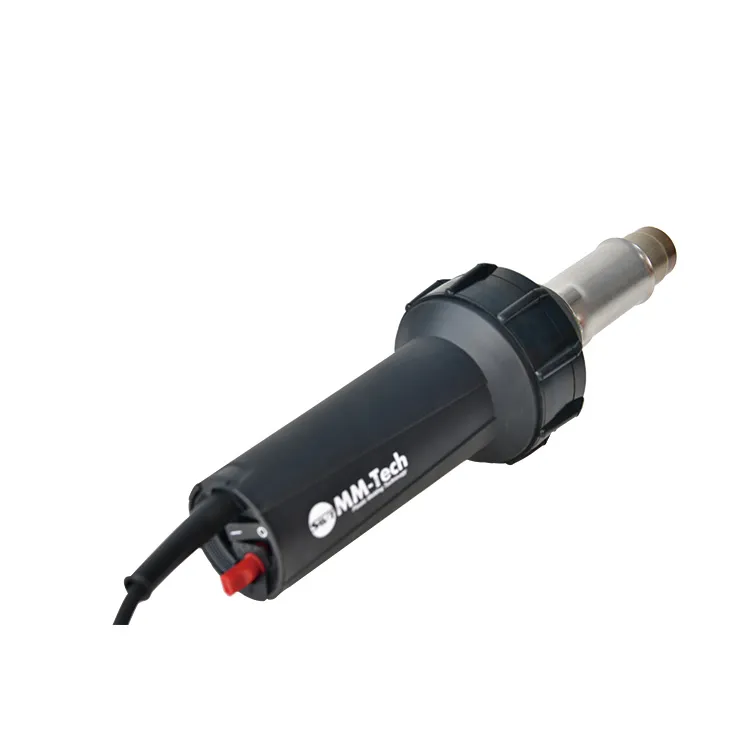

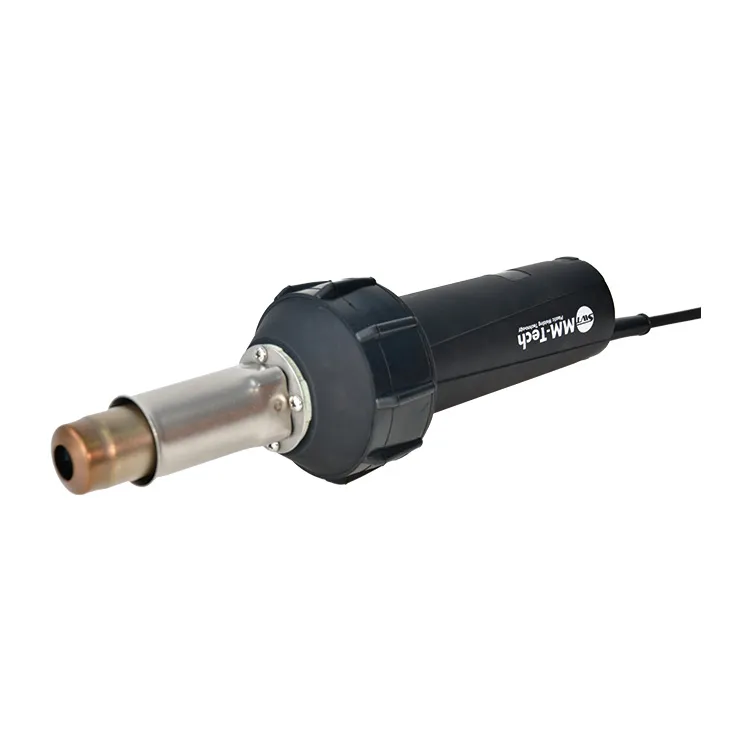

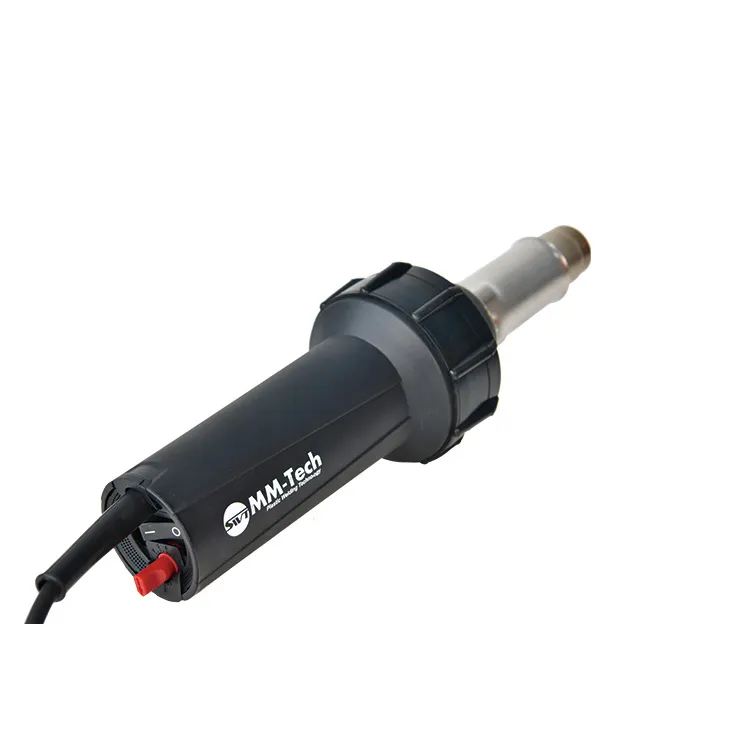

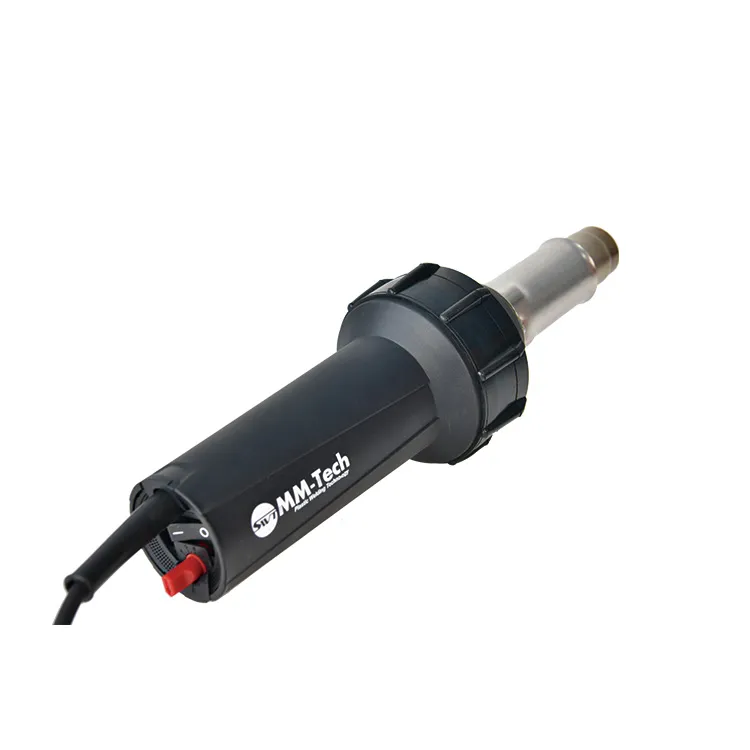

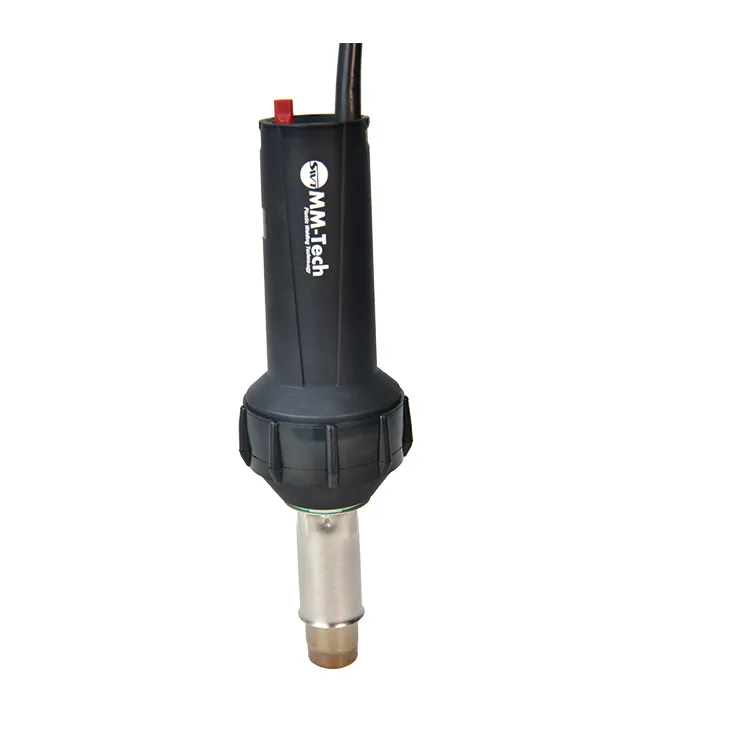

SWT-NS1600E Hot Air Gun

With its high performance and versatility, the SWT-NS1600E has become an important tool in the field of industrial welding, providing a reliable solution for the processing of various thermoplastic materials. With 1600 watts of power, the device can provide strong hot air output and is suitable for welding various thermoplastic materials. In addition to welding, the SWT-NS1600E can also be used for a variety of operations such as thermoforming, shrinking, drying and ignition.

Product Details

Contact Now

Product Details

Application

SWT-NS1600E is an industrial-grade hot air welding equipment, widely used in welding geomembranes made of PE, PP, EVA, PVC and other materials, suitable for waterproofing projects such as water conservancy projects, landfills and sewage treatment.

It is used to repair the waterproof layer of buildings and can quickly and effectively repair damaged waterproof membranes.

In the production of plastic containers, pipes and other products, it can be used to weld seams and edges to ensure the sealing and durability of the products.

Parameter Table

Rated Voltage	220V/110V
Frequency	50/60Hz
Power	1600W
Temp Adjusted	20-620℃ Adjustable Continuously
Air Volume	Max 180L/min
Air Pressure	2600Pa
Noise	≤65 Db
Handle Size	58mm
N.W	1.05KG
G.W	2.5KG
Packing size	400160130mm

Product Features

① Adjustable Temperature

20-620°C adjustable temperature ensures precise temperature control during welding of different materials and thicknesses.

② High Efficiency Power

1600W power, providing strong hot air, suitable for all kinds of welding

③ Welding nozzle

Welding head applies to variety of stainless steel welding nozzles

④Safety design

The equipment adopts double insulation design to ensure safety during operation

Accessory List

1600-103 1600W/220V heating element
1600-120411 20mm slot nozzle
1600-120421 40mm slot nozzle
1600-120461 20 mm 120°angled nozzle

1600-120491 20 mm 90°angled nozzle
1600-120431 5mm tubular nozzle
1600-120441 5mm round speed nozzle
1600-120451 5*7 triangle speed nozzle

1600-420461 tacking nozzle
20mm silica roller
40mm silica roller
20mm teflon roller

Brass roller
Green plastic carry box

Weldable Materials

buying a heat gun

hot air blower price

hot air gun price

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Electric Shrink Wrap Heat Gun

What Is An Electric Shrink Wrap Heat Gun?

A tool designed to emit hot air for shrinking plastic wraps around products or packages.

What Can It Be Used For?

Primarily used for shrink wrapping products, packaging, and securing plastic films.

What Are The Key Features?

Adjustable temperature control, high heat output, and a wide nozzle for even heat distribution.

Where Is It Commonly Used?

Common in packaging, retail, and industrial applications.

How Do I Maintain An Electric Shrink Wrap Heat Gun?

Clean the nozzle, avoid excessive use at high temperatures, and store in a dry place to prolong lifespan.
