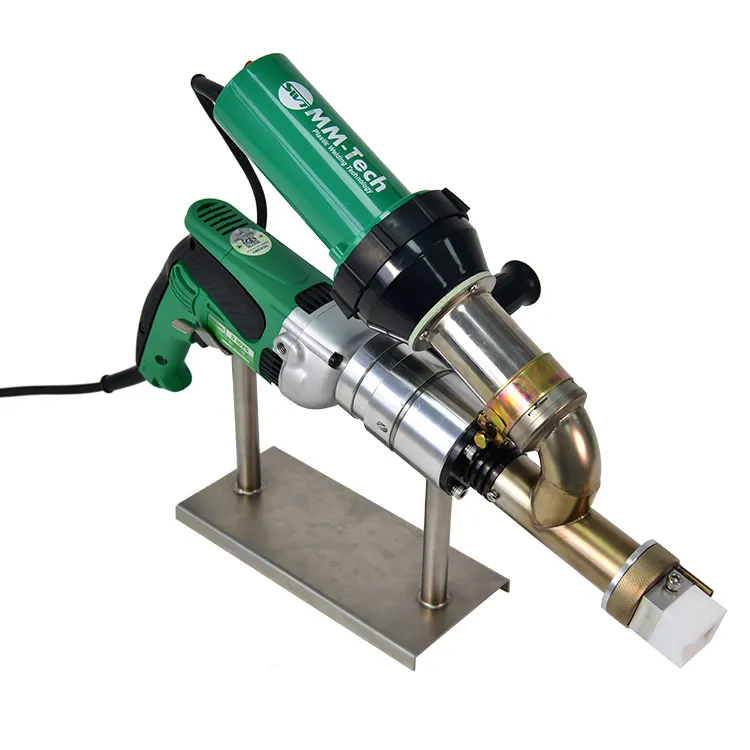

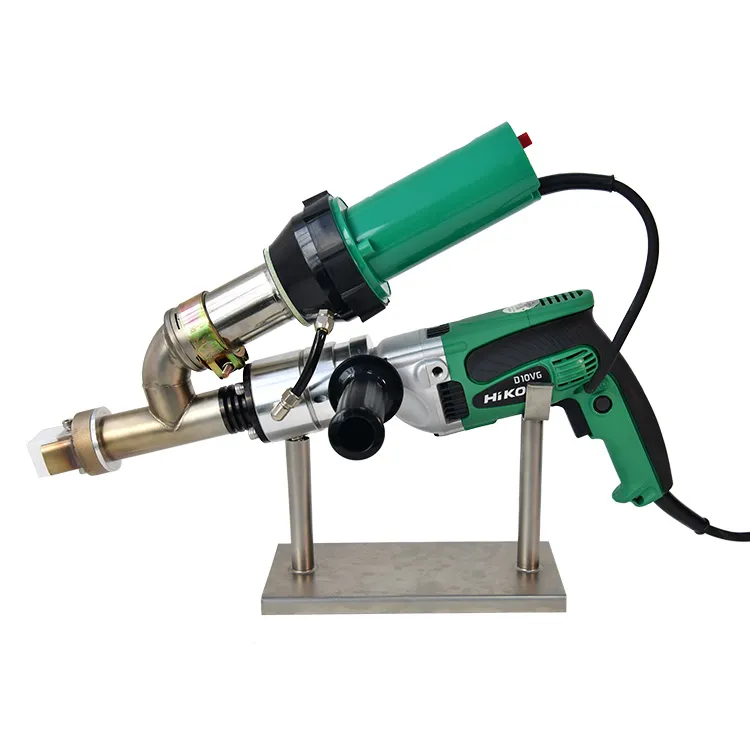

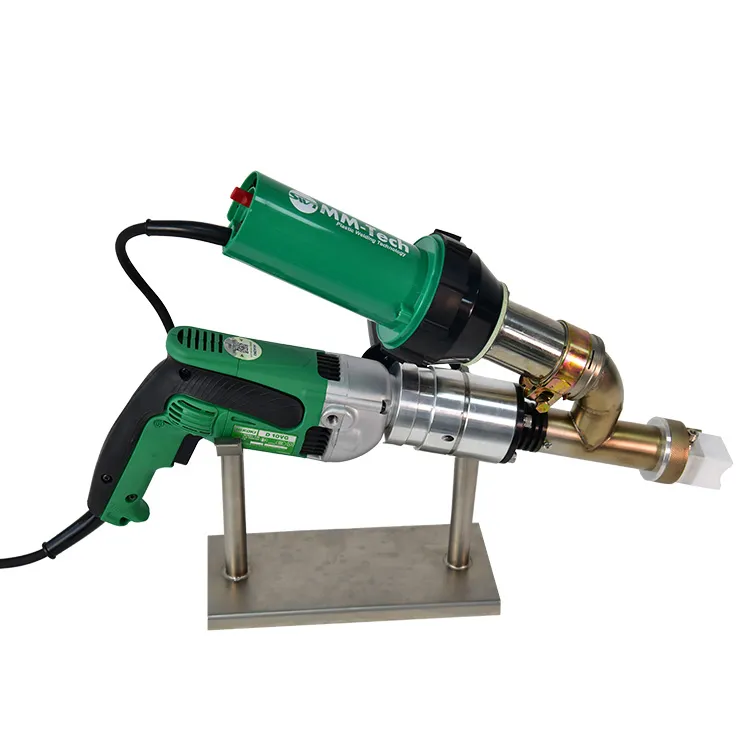

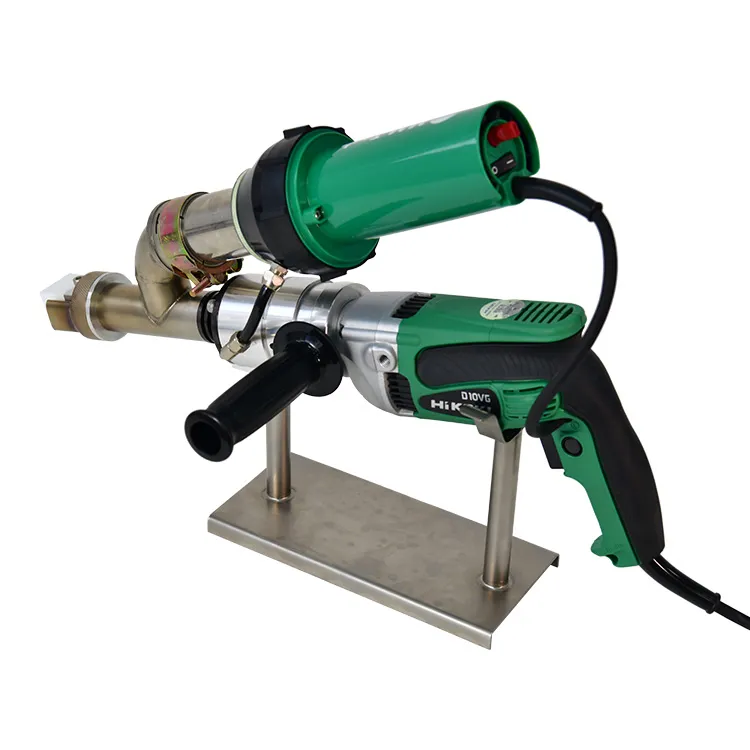

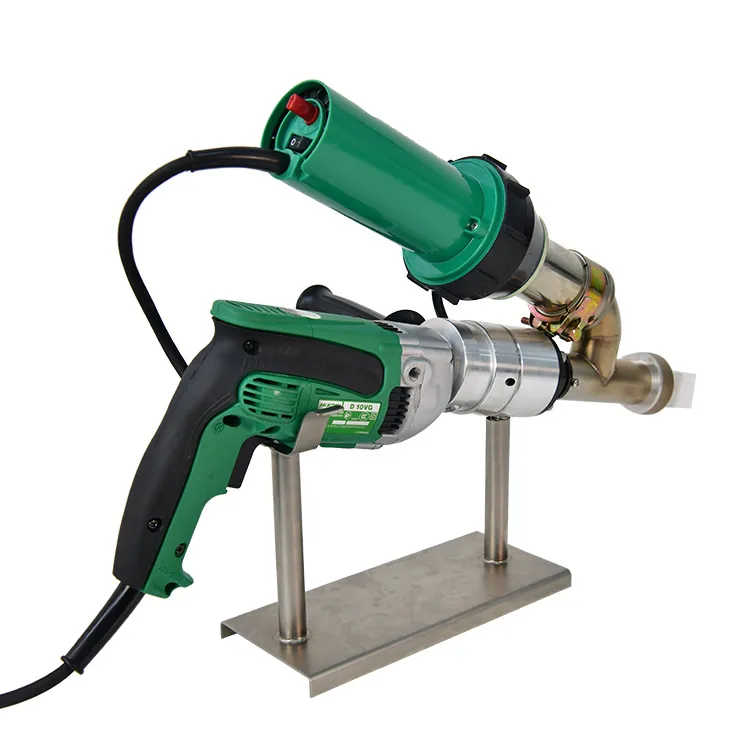

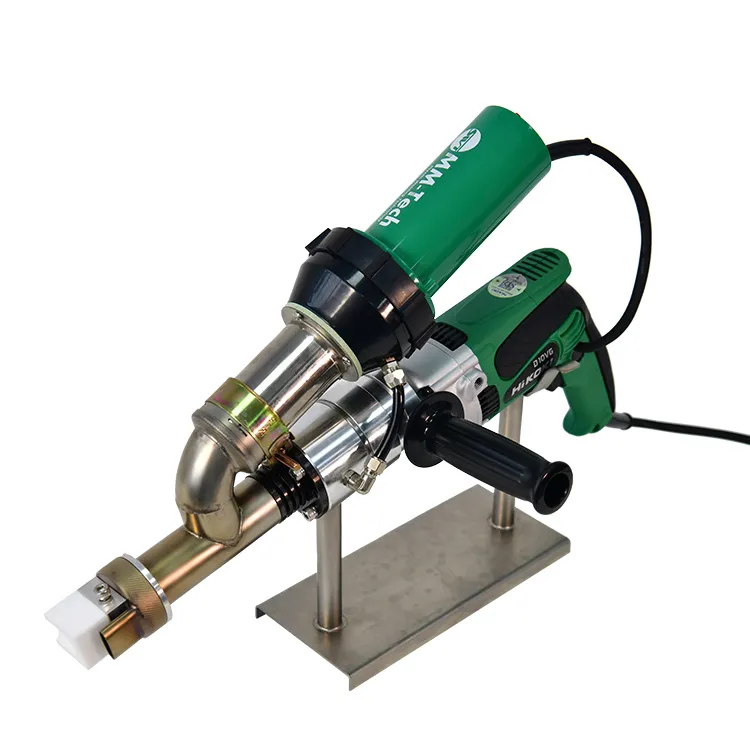

SWT-NS600E Hand Extruder Welder

The SWT-NS600E is a lightweight and efficient extrusion welding machine designed for welding thermoplastic materials such as PE, PP, PVDF, and so on. It has stable performance and easy operation, and is more suitable for using in workshops and engineering sites.

Product Details

Contact Now

Product Details

Product Video

Application

This SWT-NS600E Extrusion Welder is specifically used for welding, repairing and reinforcing plastic water pipes, membrane structures and tanks made of PP, PE, PVDF and other hot melt materials, etc. It is widely used in applications such as plastic pipe repair and connection, electroplating square trough welding, geomembrane repair.

Parameter Table

Input voltage	230V
Frequency	50/60Hz
Extruding power	800W
Hot air power	3400W
Welding rod heater power	Don’t Support Digital Display
Air temperature	20-620℃
Extruding temperature	Don’t Support Digital Display
Extruding volume	2-2.5 Kg/h
Welding rod diameter	φ3, 4 mm
Driving motor	HIKOKI
Materials thickness	1-10 mm
G./N.Weight	14.0 Kg/6.5 Kg

Product Features

①3400W powerful heating system.

②800W HIKOKI Driving Motor Hot Air Power.

③360°rotatable welding head or 2 different angle welding head.

④Uniquely developed feeding and extrusion system, smoother extrusion and longer life.

Accessory List

Overlapping Welding Shoe
Right Angle Welding Shoe
Round Welding Shoe

Blank Welding Shoe
UBL30 Overlapping Welding Shoe
V8/10 Welding Shoe

K8/10 Right Angle Welding Shoe
CL14 Round Welding Shoe
K5/6 Right Angle Welding Shoe

Weldable Materials

PE
PP
PVDF

handheld clay extruder

handheld extruder

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Wegener Extrusion Welder

What Is a Wegener Extrusion Welder?

A high-performance tool for welding thermoplastics like HDPE, PP, and PVC.

What Are Its Common Uses?

Used in plastic fabrication, pipe repair, and industrial welding applications.

How Does It Operate?

It heats and extrudes plastic, fusing materials with controlled pressure.

What Features Make It Stand Out?

Offers precise temperature control, ergonomic design, and various nozzle options.

How to Maintain It?

Clean regularly, check heating elements, and store in a dry place.
