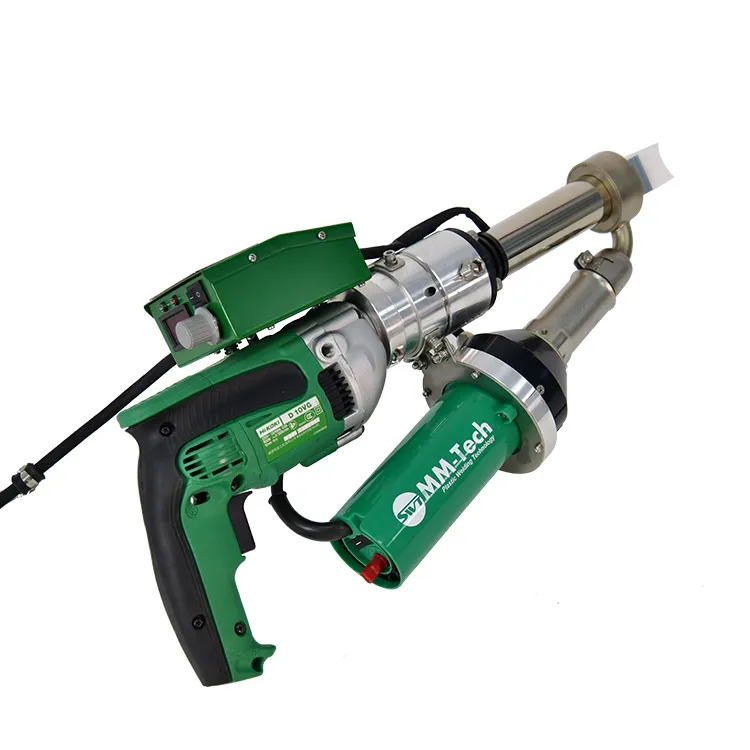

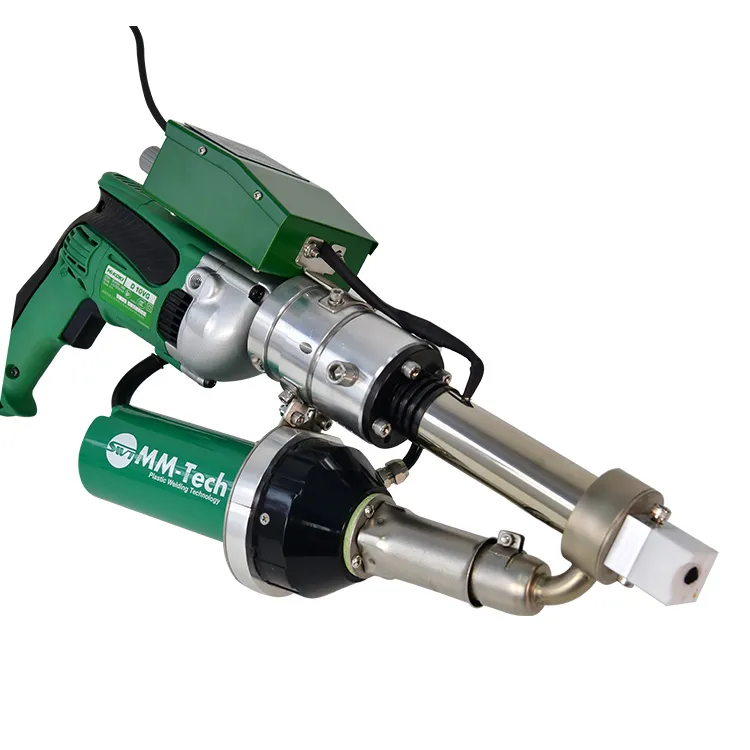

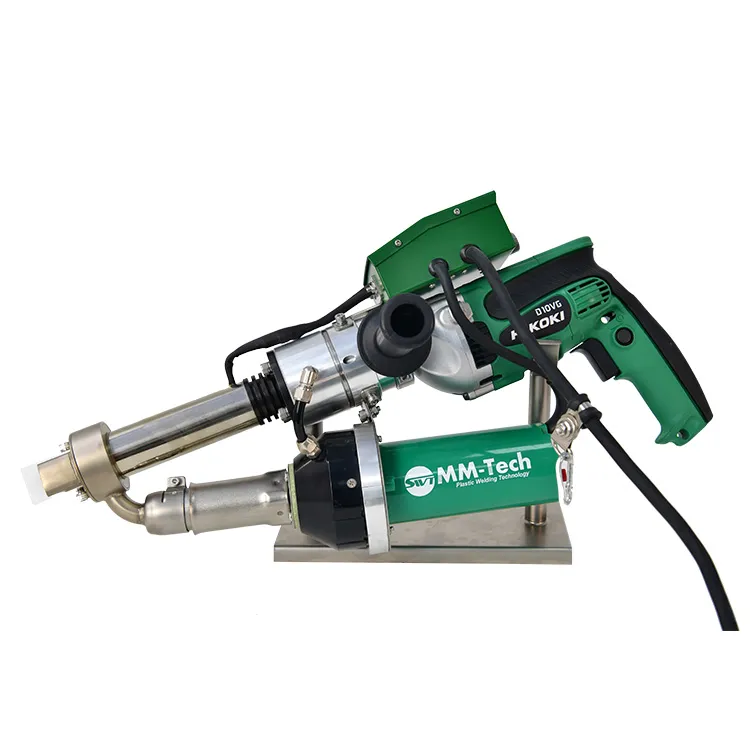

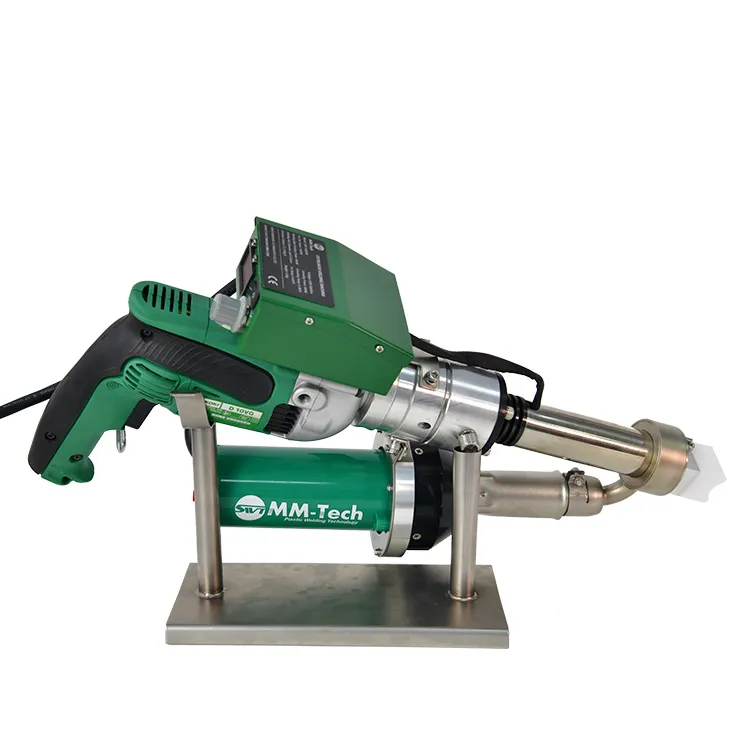

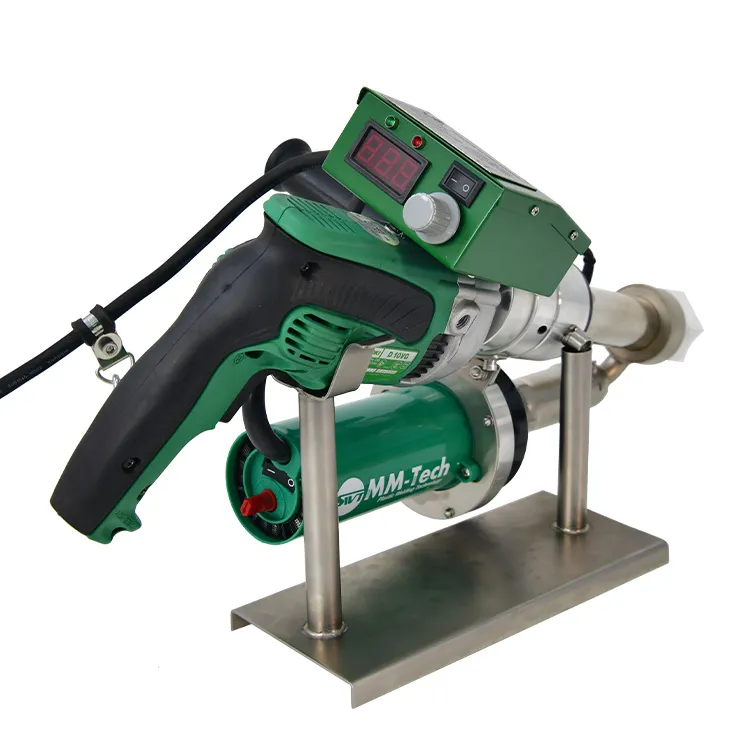

SWT-NS600C Hand Extruder Welding Gun

This Hand Extruder Welding Gun is a portable welding tool suitable for joining thermoplastics such as HDPE, LDPE, PP and PVDF, etc. It boasts stable performance, convenient operation, and is particularly advantageous for welding narrow gaps and corners that are difficult to access.

Product Details

Contact Now

Product Details

Product Video

Application

The SWT-NS600C is a versatile and powerful machine, it’s suitable for a wide range of applications.is suitable for the connection and waterproof sealing of plastic pipes, welding of plastic sheets, welding of chemical tanks, and is applied in sewage treatment tanks, geomembrane sealing, aquaculture tanks and so on.

Parameter Table

Input voltage	230V
Frequency	50/60Hz
Extruding power	800W
Hot air power	1600W
Welding rod heater power	800W
Air temperature	20-620℃
Extruding temperature	50-380℃
Extruding volume	2-2.5 Kg/h
Welding rod diameter	φ3, 4 mm (5 mm can be customized)
Driving motor	HIKOKI
Materials thickness	1-20 mm
G./N.Weight	14.0 Kg/6.5 Kg

Product Features

①Dual heating systems.

②LCD temperature controller.

③Motor cold protection.

④360°rotatable welding head or 2 different angle welding head.

⑤800W Japan HIKOKI extruding auger, 1600W CE certified hot air gun and 800W welding rod heating system.

Accessory List

Overlapping Welding Shoe
Right Angle Welding Shoe
Round Welding Shoe

Blank Welding Shoe
UBL30 Overlapping Welding Shoe
V8/10 Welding Shoe

K8/10 Right Angle Welding Shoe
CL14 Round Welding Shoe
K5/6 Right Angle Welding Shoe

Weldable Materials

PE
PP
PVDF

clay hand extruder

hand extruder

hand extruder clay

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Extrusion Gun HDPE

What Is an Extrusion Gun HDPE?

It is a tool used to weld HDPE by extruding heated plastic for strong, seamless joints.

What Are Its Main Applications?

Commonly used in pipe welding, tank fabrication, and geomembrane sealing.

How Does It Work?

It heats and extrudes HDPE through a nozzle, bonding materials under pressure.

What Features Should I Look For?

Key features include adjustable temperature, nozzle options, and ergonomic design.

How to Maintain an Extrusion Gun?

Regularly clean the nozzle, check heating elements, and store in a dry place.
