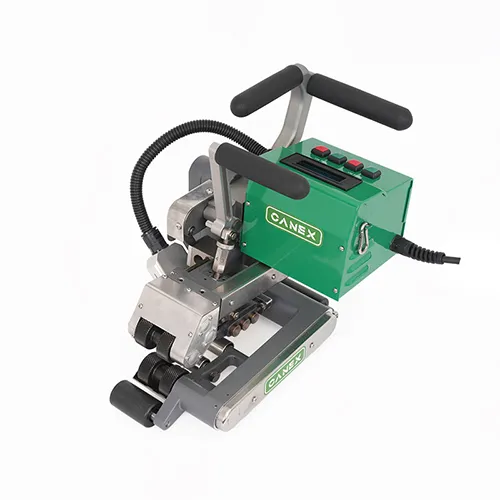

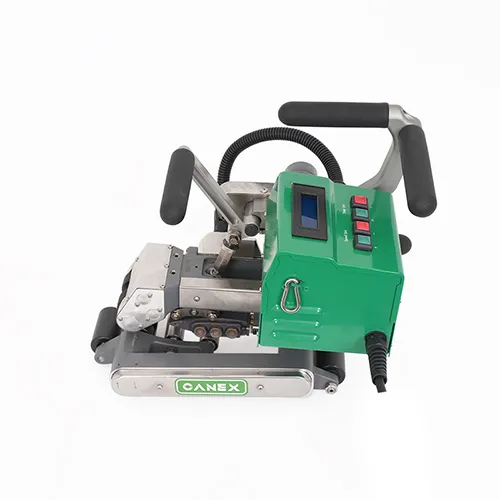

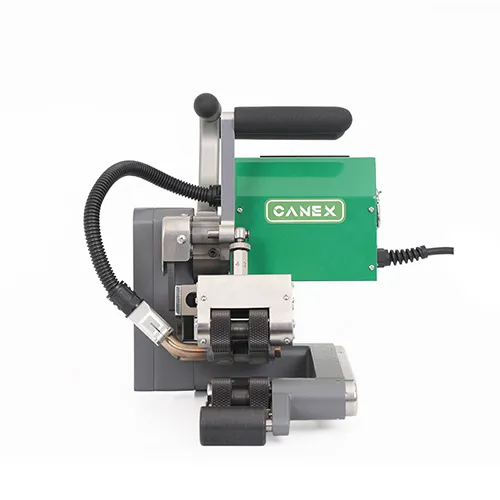

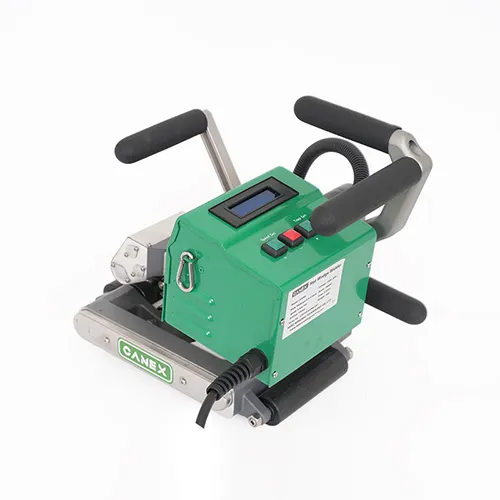

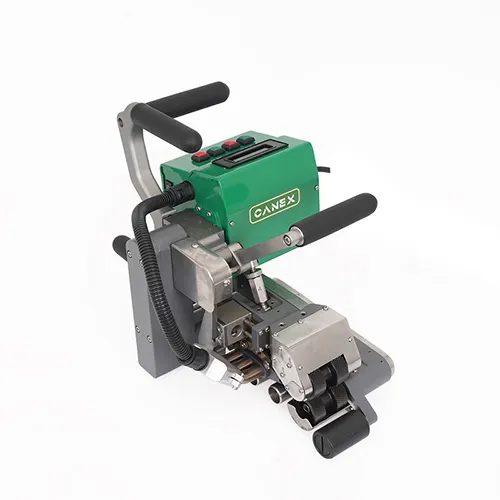

CX500S Geomembrane Welding Machine

The CX500S has a power of 1800W and a weight of 10kg. This is a dual-purpose welding machine, support the same side into the film, that is, the two films are welded from the left side, the same side into the film unilateral welding, generally used for biogas pond, landfill cover, circular aquaculture pond welding, normal can also be both sides into the film, left and right into the film lap welding.

Product Details

Contact Now

Product Details

Product Video

Application

The geomembrane welding machine CX500S is widely used in various fields. In civil engineering, it helps construct roads, railways and airports by welding geomembrane for reinforcement and waterproofing. In water conservancy projects, it ensures the integrity of canals and reservoirs. Also, it serves well in landfill sites and mining industries, offering reliable welding for pond liner to prevent leaks and ensure safety. In agriculture, it aids in the construction of irrigation systems and ponds. Its efficient and high - quality welding contributes significantly to project success.

Parameter Table

Input voltage	220V, 50Hz
Power	1800W
Welding speed	0-6m/min
Heating temperature	0-450℃
Welding material thickness	0.8-3.0mm (single layer)
Welding seam width	16mm×2, inner cavity 16mm Welding seam strength ≥85% of original material (tensile strength in shear direction)
Overlap width	110mm
Net weight	10kg

Product Features

① Main Frame Design
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
② Precision Bearings
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
③ Liquid Crystal Display Screen
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
④ Pressure Adjustment
The entire bearing of the machine is imported from Germany.
⑤ Hot Wedge
Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times that of brass. Copper has good viscosity and the fixing screws are not loose.
⑥ Heating Tube
The wading depth of the machine is 50mm (water less than or equal to 50mm will not burn the machine). The heating cartridge adopts a curved tube design.

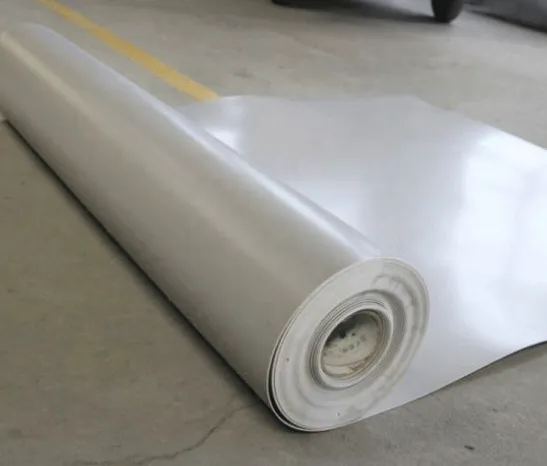

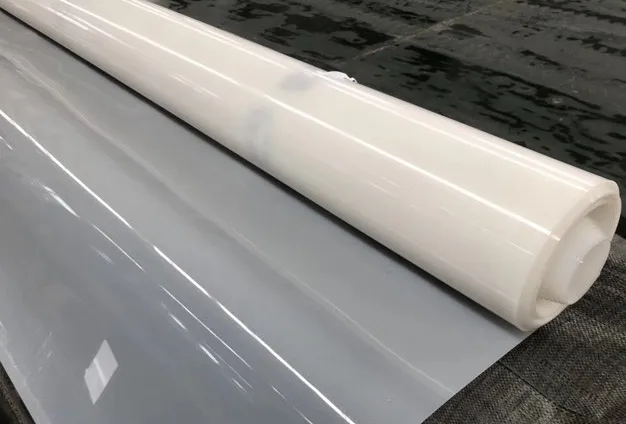

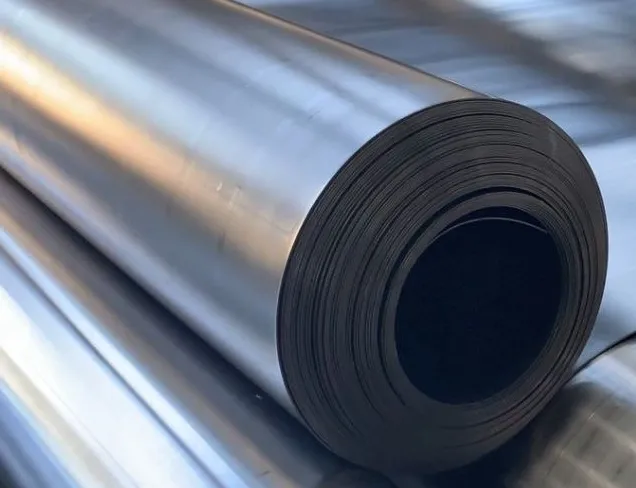

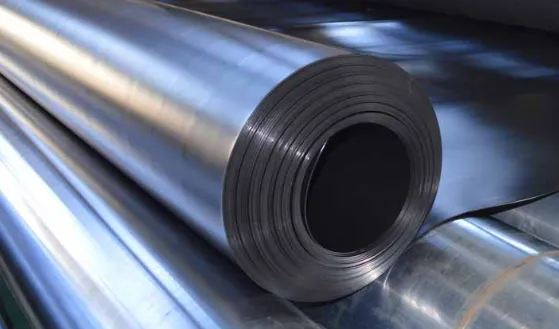

Weldable Materials
