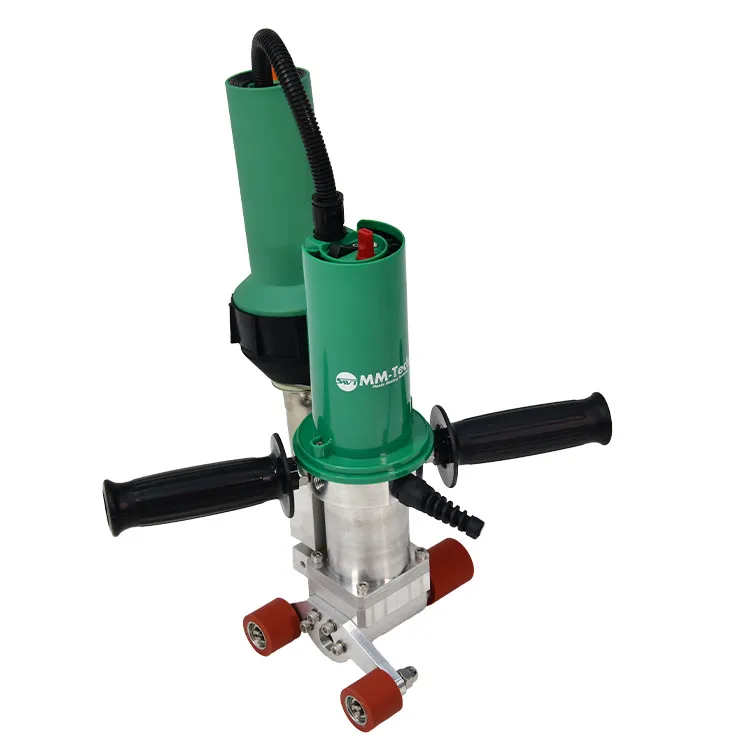

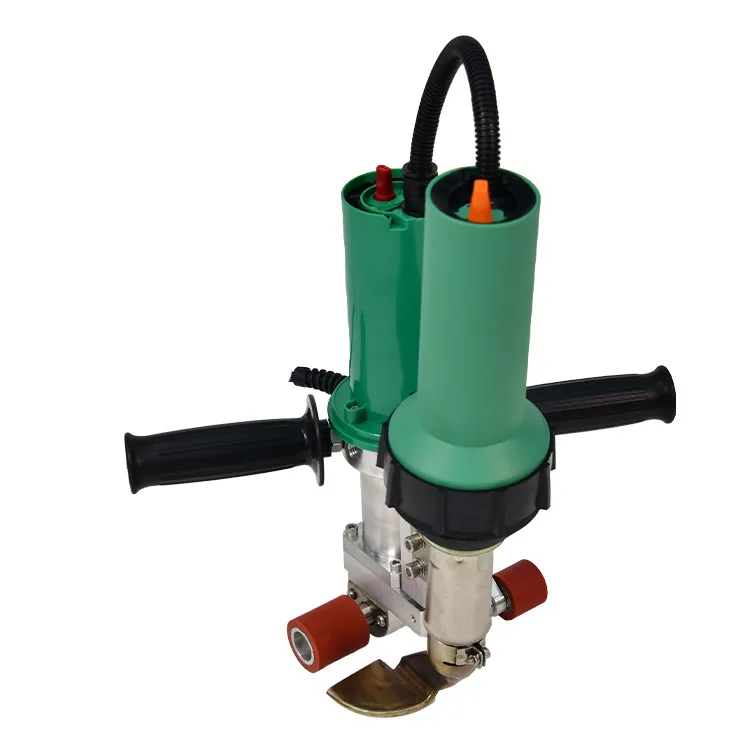

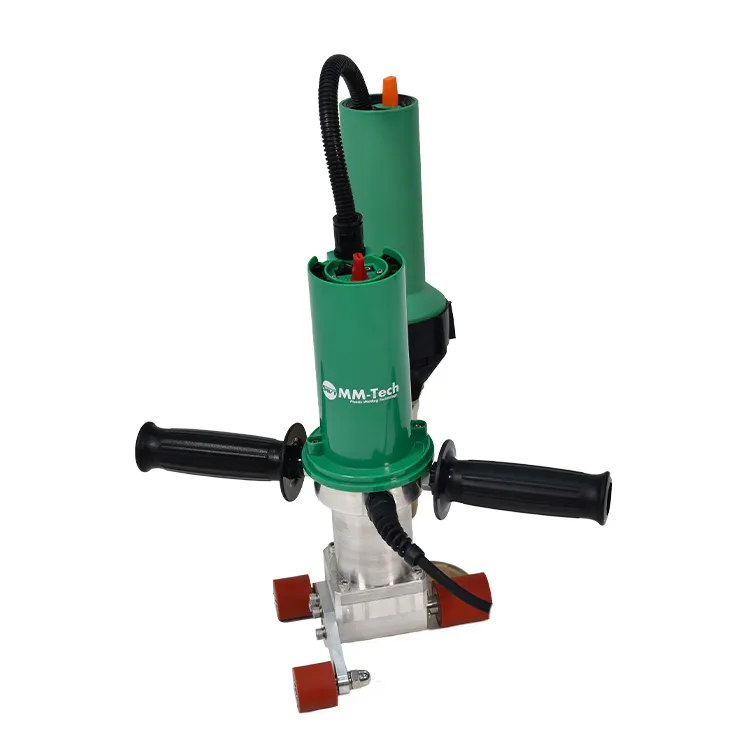

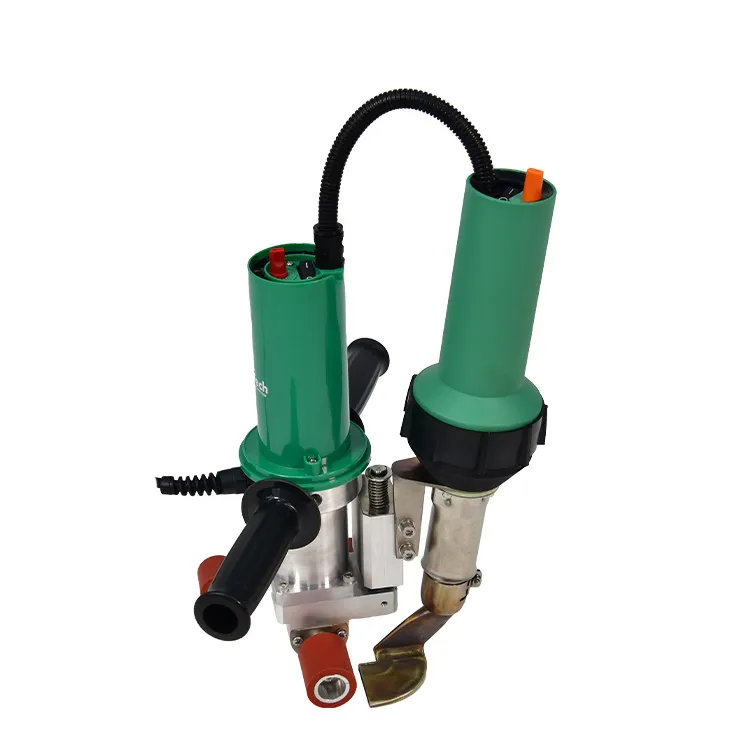

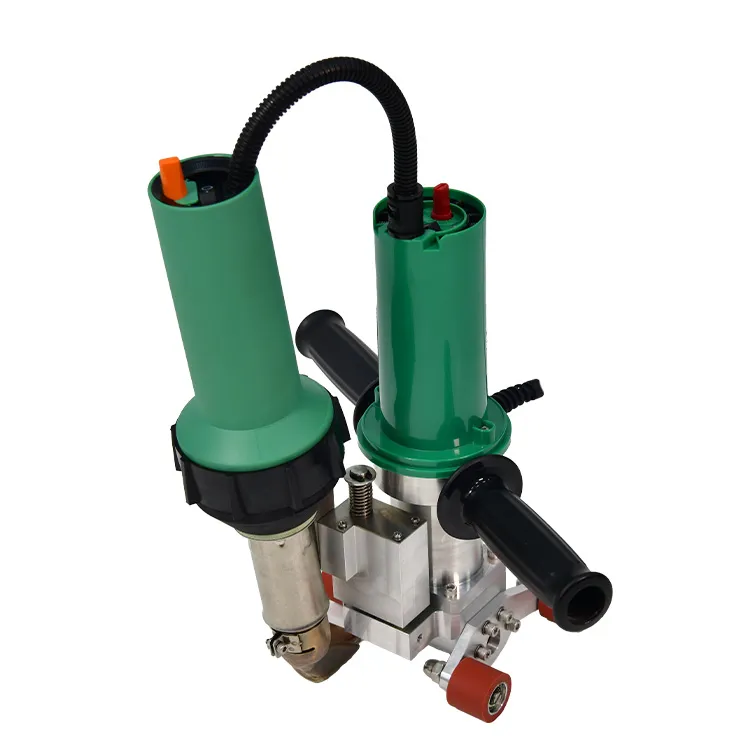

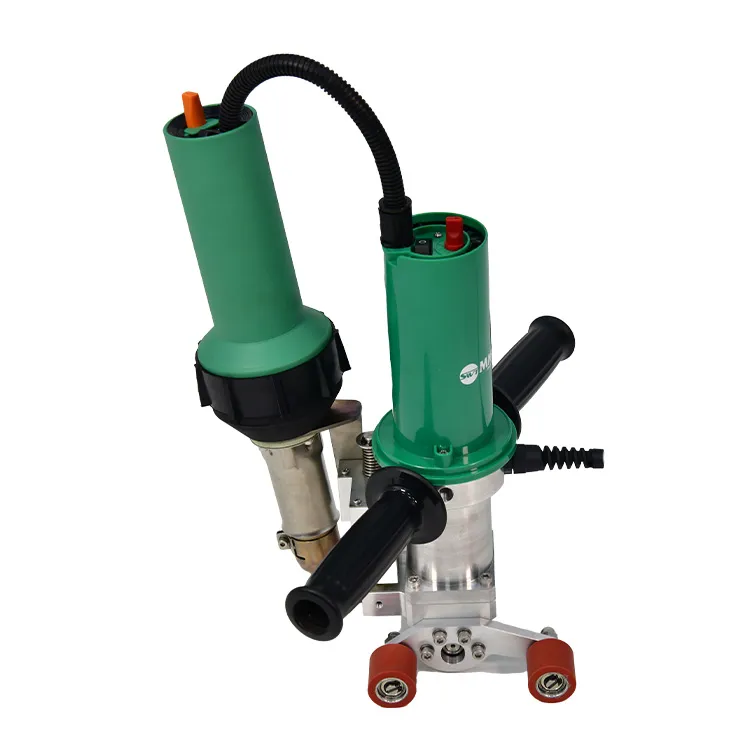

Polymer Hot Air Welder SWT-TAC

SWT-TAC, a highly effective and reliable welding tool, is widely used in waterproofing projects for building roofs, particularly for the fusion welding of various waterproofing membranes such as PVC and TPO. This tool is designed to ensure strong, durable, and seamless joints between the membrane sheets, preventing water infiltration and ensuring long-term protection for the underlying structure.

Product Details

Contact Now

Product Details

Application

SWT-TAC is widely used in waterproofing projects of building roofs, especially in the welding of waterproofing membranes such as PVC and TPO. It can also be used for welding waterproofing membranes in industrial plants, public venues, underground projects, swimming pools and other fields.

In addition to its application in roofing, SWT-TAC is also utilized in a variety of other critical waterproofing projects. These include industrial plants where robust protection against water and chemical exposure is necessary, as well as public venues like sports arenas, shopping malls, and entertainment complexes where waterproofing is crucial for maintaining the integrity of the building. Moreover, SWT-TAC proves essential in underground construction projects, such as tunnels and basements, where waterproof membranes are required to withstand hydrostatic pressure and environmental stresses.

Its ability to seamlessly weld a range of membrane materials makes it an ideal choice for contractors and engineers working on large-scale projects with high waterproofing requirements.

Parameter Table

Application	Semi-automatic Overlap Welding
Voltage	230V
Power	1700W
Welding Speed	0.5-5.0m/min
Heating Temperature	50-620℃ Adjustable
Welding Pressure	manual
Welding Seam	40mm
N.W	4.5KG
G.W.	10KG
Packing size	475350235mm

Product Features

① Semi-automatic Machine

Semi-automatic overlap welder for PVC roof welding polymer hot air welding

② Heating System

Adjustable temperature and stable hot air volume

③ Welding Nozzle

The perfect combination of nozzle and pressure wheel ensures efficient welding process

④ Handle design

The handle design is ergonomic, easy to operate, and improves the convenience of use

Accessory List

Nozzle Assembly
Pressure Roller

Weldable Materials

PVC
TPO
SBS Bitumen

heat welder for tpo

hot air welder

hot air welder for plastic

tpo welding gun

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Hot Air Welder

What Is a Hot Air Welder?

A tool that uses hot air to heat and weld thermoplastics.

What Materials Can It Weld?

Commonly used for welding PVC, HDPE, and other thermoplastics.

Where Is It Used?

Used in plastic fabrication, repairs, and geomembrane welding.

What Are Its Key Features?

Adjustable temperature, airflow control, and ergonomic design.

How to Maintain a Hot Air Welder?

Clean the nozzle, check airflow, and store in a dry environment.
