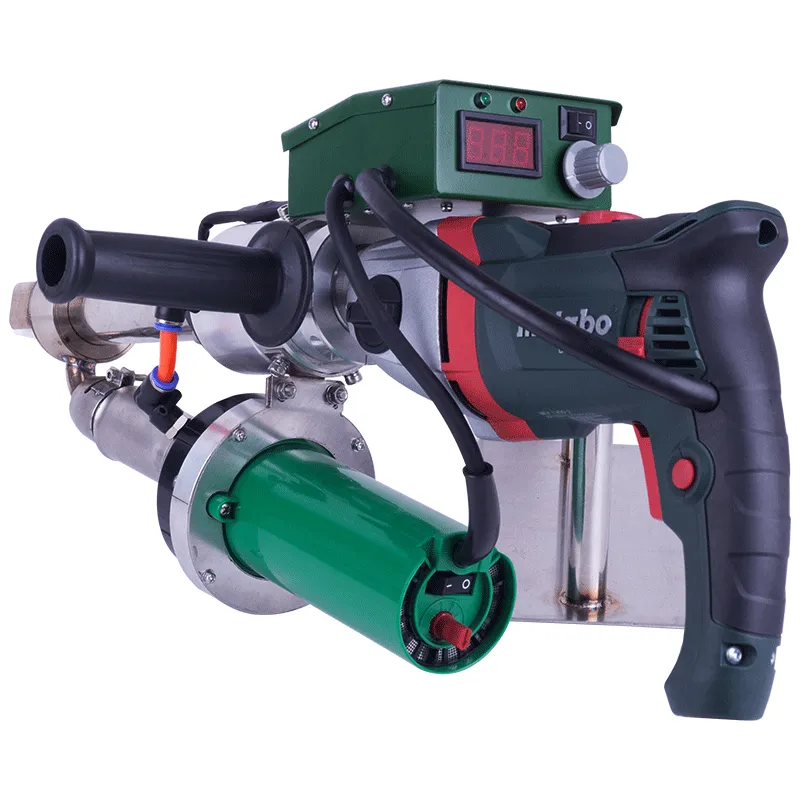

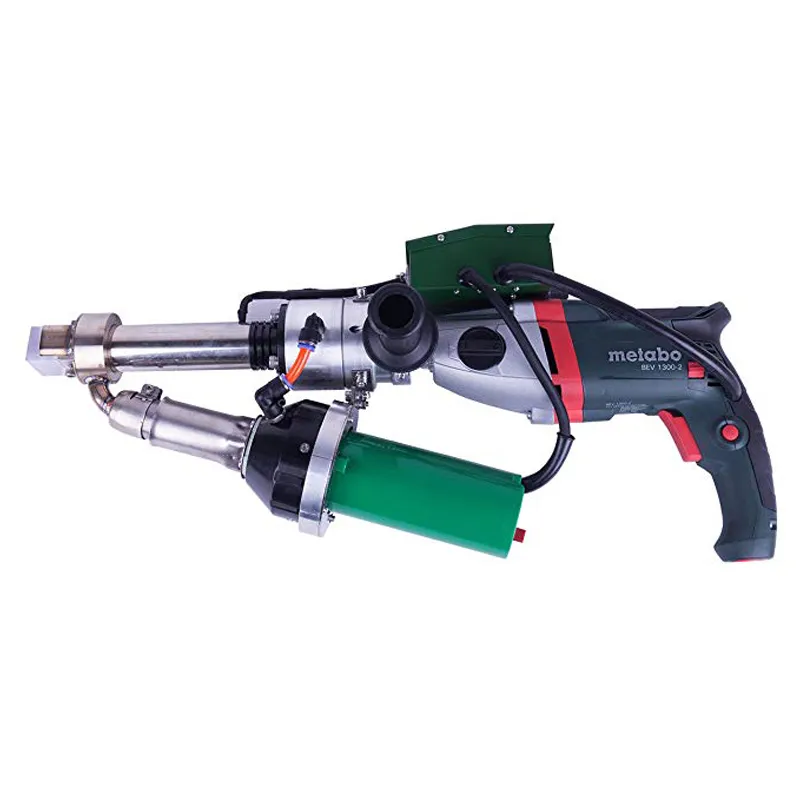

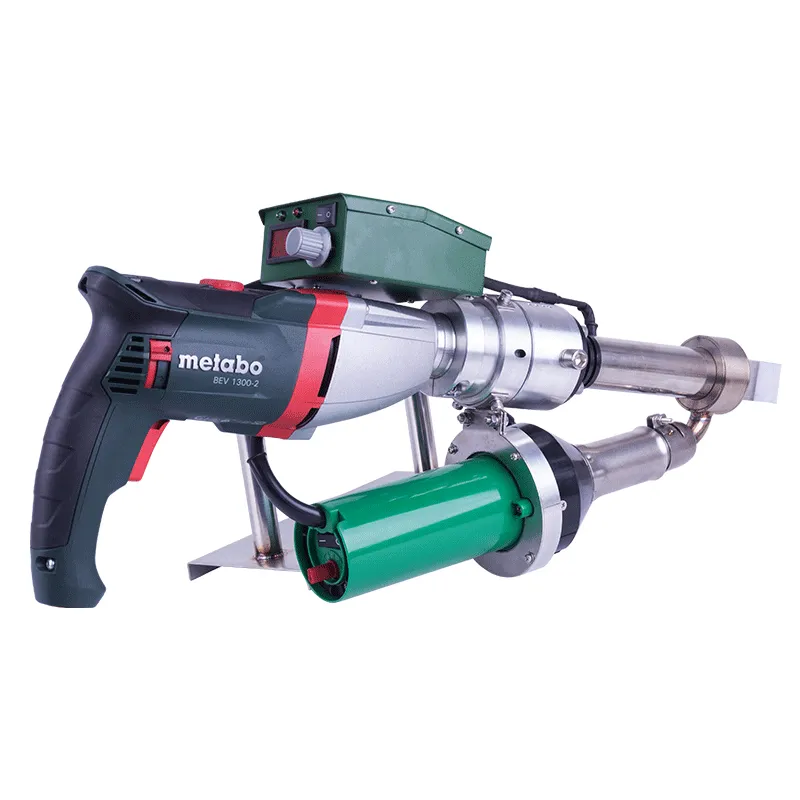

SWT-NS610C Hand Extrusion Welding Gun

The SWT-NS610C is particularly suitable for welding thermoplastic materials such as HDPE, LDPE, PP, PVDF, and so on. It is not restricted by external sites and external conditions during use, making it flexible to use in workshops and construction sites.

Product Details

Contact Now

Product Details

Product Video

Application

This SWT-NS610C extrusion welding machine is widely used in welding, repairing and reinforcing plastic products, and performs well in applications such as plastic tank manufacturing, structural parts welding, pipe and geomembrane welding, etc. Its adaptability and effectiveness in handling different types of plastic materials ensure that it is a reliable choice for a multitude of projects.

Parameter Table

Input voltage	230V
Frequency	50/60Hz
Extruding power	1300W
Hot air power	1600W
Welding rod heater power	800W
Air temperature	20-620℃
Extruding temperature	50-380℃
Extruding volume	2-3 Kg/h
Welding rod diameter	φ3, 4 mm (5 mm can be customized)
Driving motor	METABO
Materials thickness	1-20 mm
G./N.Weight	14.0 Kg/7 Kg

Product Features

① Dual heating systems.

② LCD temperature controller.

③ Motor cold protection.

④ 360°rotatable welding head or 2 different angle welding head.

⑤1300W Germany METABO extruding auger, 1600W CE certified hot air gun and 800W welding rod heating system.

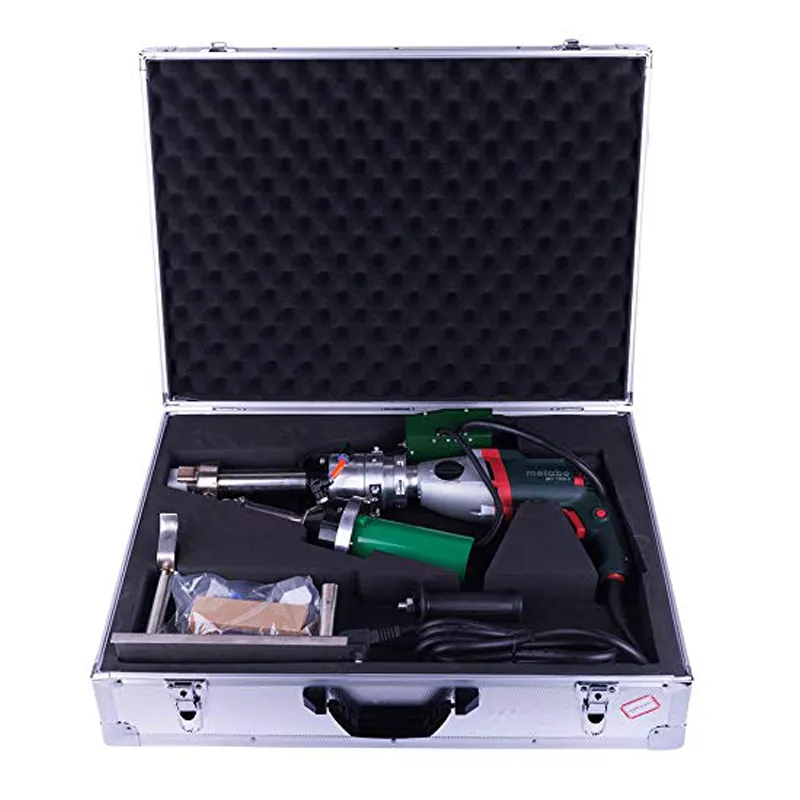

Accessory List

Overlapping Welding Shoe
Right Angle Welding Shoe
Round Welding Shoe

Blank Welding Shoe
UBL30 Overlapping Welding Shoe
V8/10 Welding Shoe

K8/10 Right Angle Welding Shoe
CL14 Round Welding Shoe
K5/6 Right Angle Welding Shoe

Weldable Materials

PE
PP
PVDF

extruder welder

extrusion welder

extrusion welder for sale

extrusion welding hdpe liner

extrusion welding hdpe pipe

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

FAQ Plastic Extruder Gun

What Is a Plastic Extruder Gun?

A tool that welds thermoplastics by extruding heated plastic material.

What Materials Can It Weld?

Works with HDPE, PP, PVC, and other thermoplastics.

Where Is It Commonly Used?

Used in plastic fabrication, pipe repair, and industrial welding.

What Are Its Key Features?

Includes adjustable temperature, various nozzle options, and ergonomic design.

How to Maintain It?

Clean the nozzle regularly, check heating elements, and store properly.
