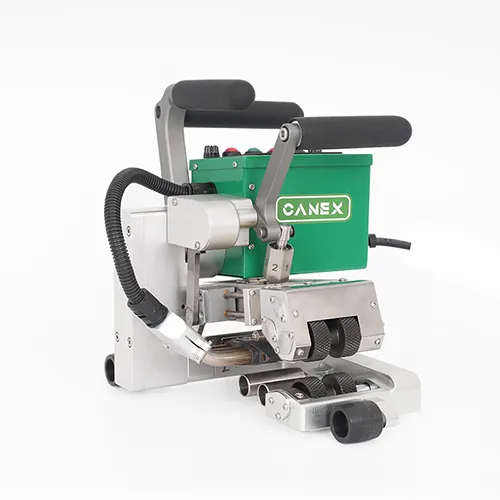

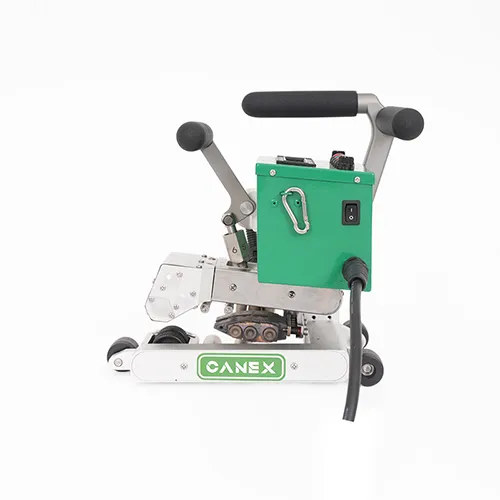

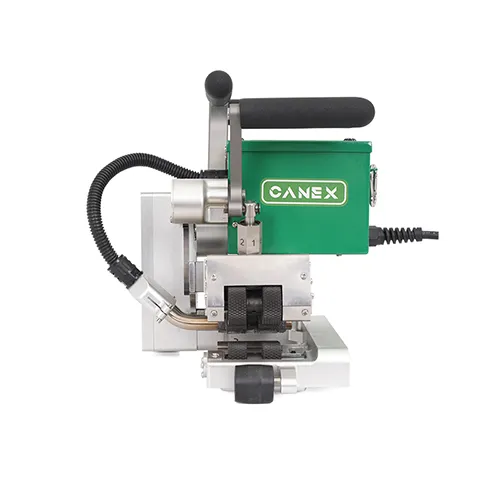

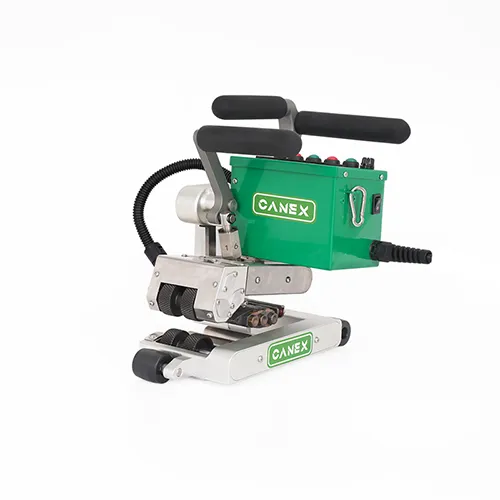

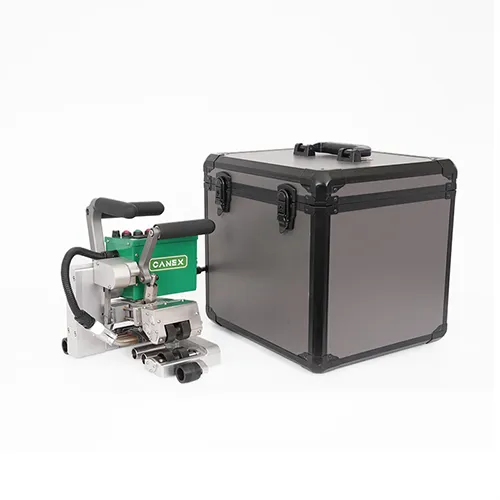

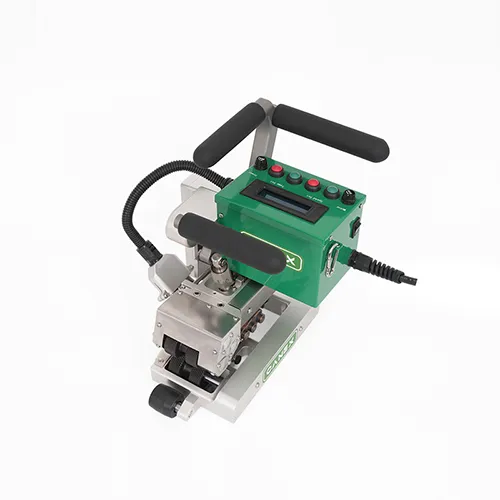

CX300 Geomembrane Welding Machine

The CX300 is a dual-purpose welding machine, support the same side into the film, that is, the two films are welded from the left side, the same side into the film unilateral welding, generally used for biogas pond, landfill cover, circular aquaculture pond welding, normal can also be both sides into the film, left and right into the film lap welding.

Product Details

Contact Now

Product Details

Product Video

Application

The geomembrane welding machine CX300 is used to weld the geomembrane anti-seepage layer of the reservoir dam to prevent water leakage in the reservoir and ensure the stable operation of water conservancy facilities. In the mining process, it is used for anti-seepage of mines to prevent slag and sewage leakage from polluting the surrounding environment of the mining area. The geomembrane welding machine is one of the key equipment of the landfill anti-seepage system, preventing the leakage of landfill leachate from polluting the soil and groundwater and protecting the environment.

Parameter Table

Input voltage	220V, 50Hz
Power	1400W (hot wedge length 70mm)
Welding speed	0-8m/min
Heating temperature	0-450℃
Welding material thickness	0.5mm-1.5mm
Welding seam width	15mm×2, inner cavity 12mm Welding seam strength ≥85% of original material (tensile strength in shear direction)
Overlap width	100mm
Net weight	7kg

Product Features

① Main Frame Design

The main frame is made of aviation aluminum,die-cast, and painted on thesurface, which is light and strong.

② Precision Bearings

The bearing position and screw holes are CNC machined, using Japanese lKO needle roller bearings and German NSK deep groove ball bearings.

③ Digital Display Screen

The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.

④ Pressure Adjustment

The double handle design is ergonomic and the pressure nut is equipped with a high-strength spring for easy adjustment.

⑤ Hot Wedge

Equipped with a copper hot wedge, the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to lose.

⑥ Heating Cartridge

The wading depth of the machine is 50mm(water less than or equal to 5Omm will not burn the machine). The heating cartridge adopts a curved tube design.

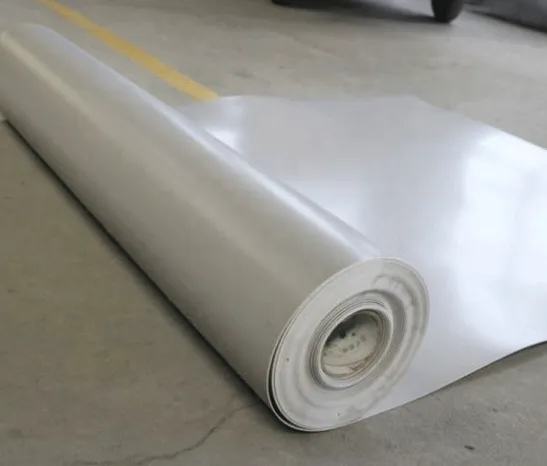

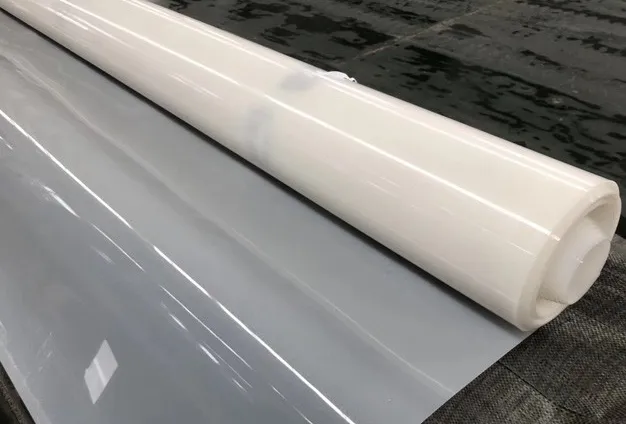

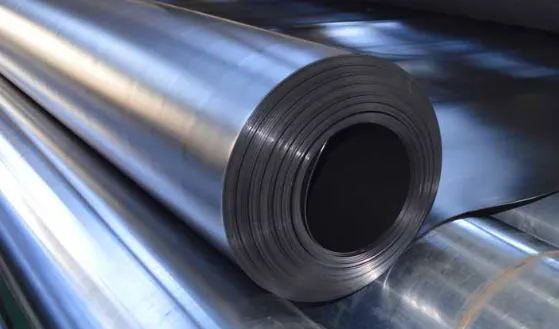

Weldable Materials
