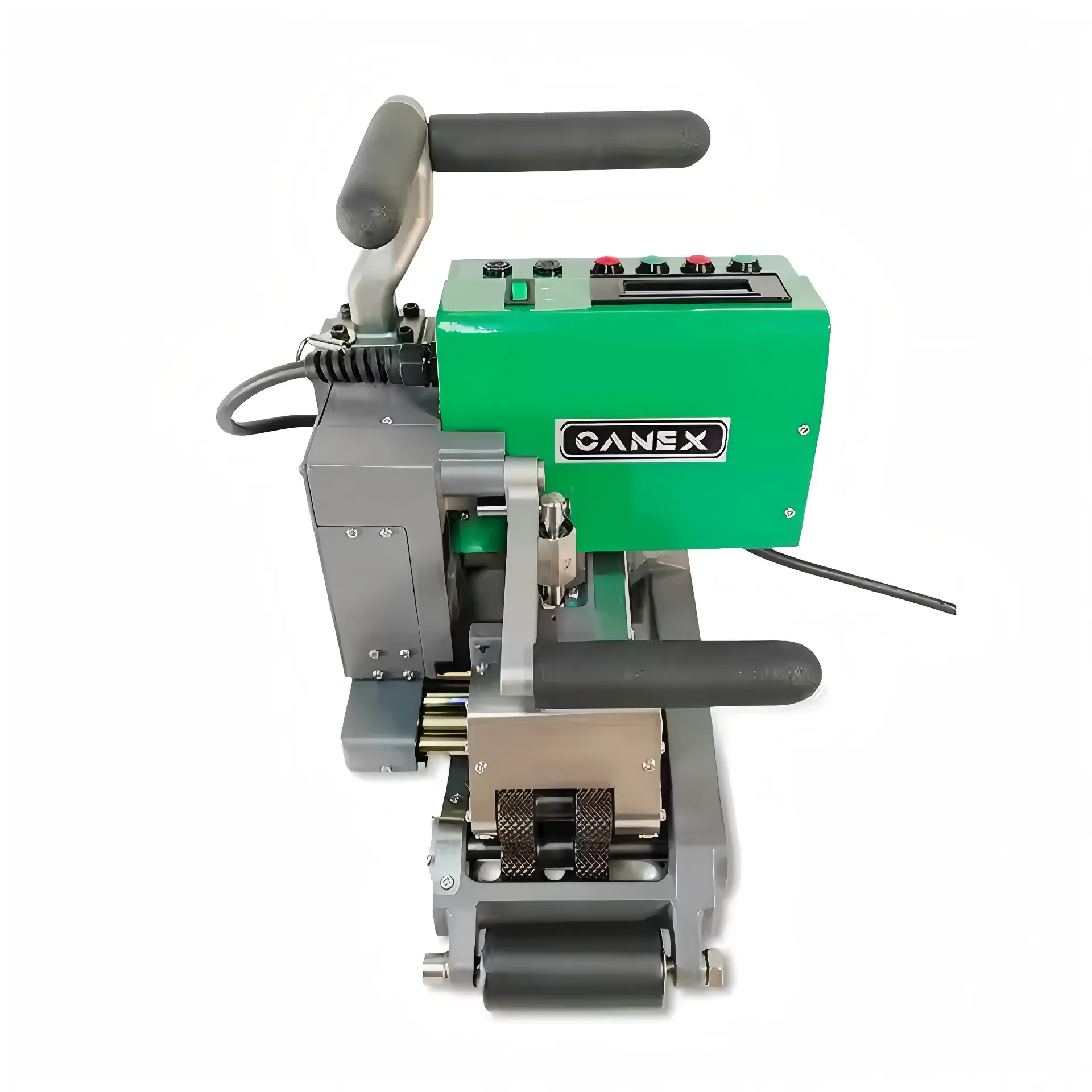

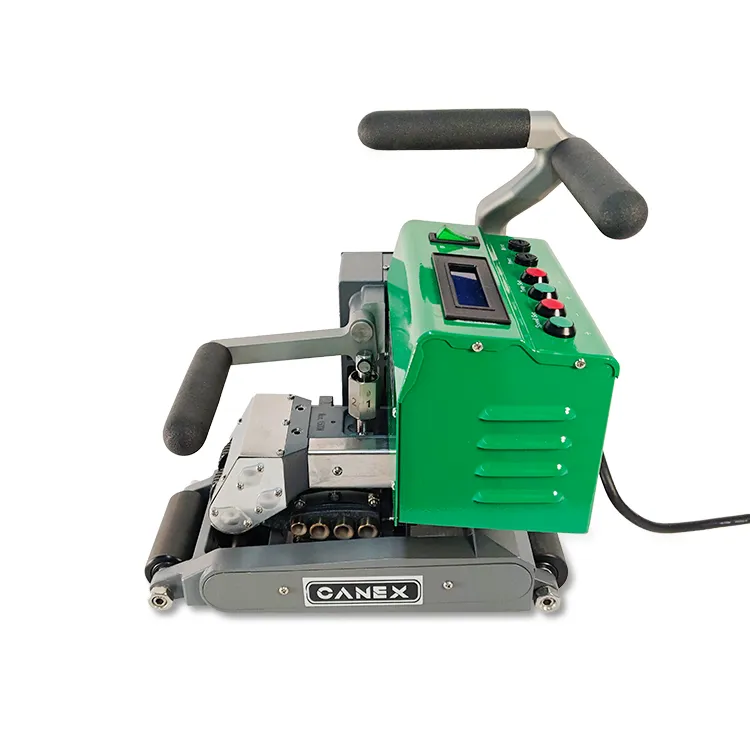

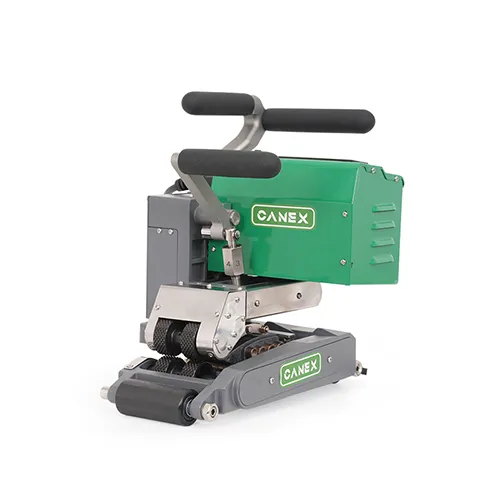

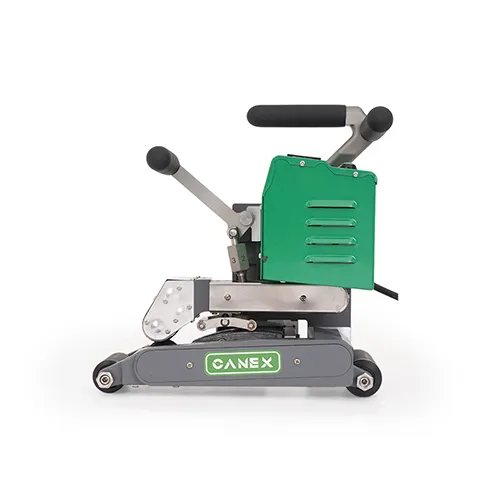

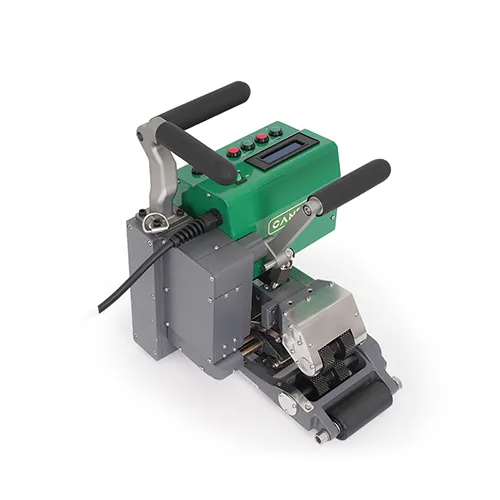

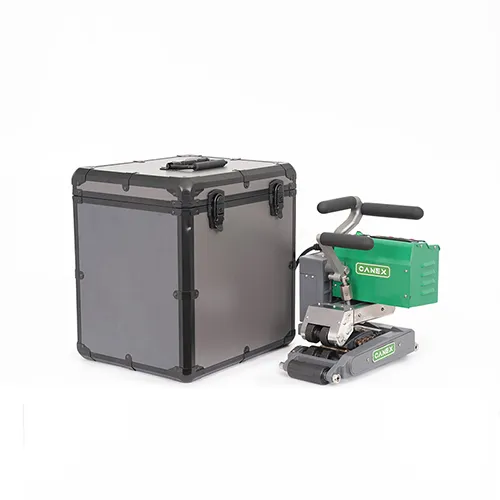

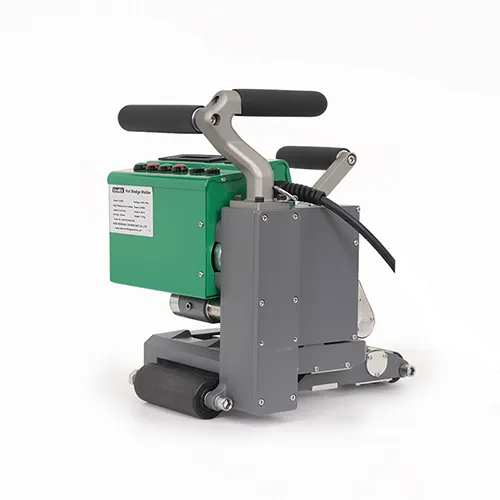

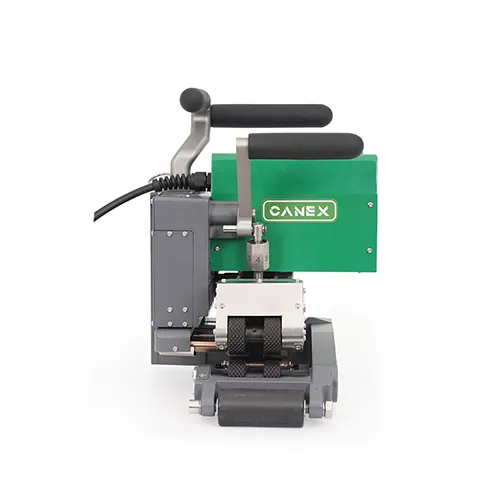

CX600 Hot Wedge Machine

The CX600 has a power of 2100W and a weight of 11.5kg. The main frame of this machine, the material used is aviation aluminum, the characteristics of this material, light weight, high strength, no deformation, and we use the die casting process, (not foundry die casting), is open steel mold, the use of 1500 tons of die casting machine die casting molding, after forming, the surface is painted treatment, spray paint after processing.

পণ্যের বিবরণ

এখনই যোগাযোগ করুন

পণ্যের বিবরণ

আবেদন

The Hot Wedge Machine CX600 is commonly used in multiple fields. In civil engineering, it is essential for constructing roads, railways, airports, etc., providing reliable welding to ensure the stability and waterproofing of pond liner. For water conservancy projects, it helps in building canals, reservoirs and other hydraulic structures, preventing water leakage. In the environmental protection field, it is widely used in landfill sites to prevent pollutants from seeping into the soil and groundwater. In mining, it offers an effective solution for welding geomembrane in mines and tailings ponds, ensuring safety. Additionally, it serves well in agriculture for constructing irrigation systems and ponds. Its efficient and high - quality welding plays a significant role in the success of various projects.

প্যারামিটার টেবিল

ইনপুট ভোল্টেজ	220V, 50Hz
ক্ষমতা	2100W (hot wedge length 100mm)
ঢালাই গতি	0-8m/min
Heating temperature	0-450℃
ঢালাই উপাদান বেধ	0.8-4.0mm (single layer)
Welding seam width	16mm×2, inner cavity 16mm Welding seam strength ≥85% of original material (tensile strength in shear direction)
ওভারল্যাপ প্রস্থ	120mm
Net weight	11.5kg

পণ্যের বৈশিষ্ট্য

①Main Frame Design
The main frame is made of aviation aluminum, die-cast, and painted on the surface, which is light and strong.
② Precision Bearings
The bearing position and screw holes are CNC machined, using Japanese IKO needle roller bearings and German NSK deep groove ball bearings.
③ Liquid Crystal Display Screen
The temperature and speed are controlled by computer chip programming, and the LCD screen digitally displays the temperature and speed.
④ Pressure Adjustment
The double handle design is ergonomic, and the pressure nut is equipped with a high-strength spring for easy adjustment.
⑤ Hot Wedge
The hot wedge cutter is available in copper and brass. The curved pipe design is waterproof, and the fixing screws are filled with silicone shields.

Weldable Materials
