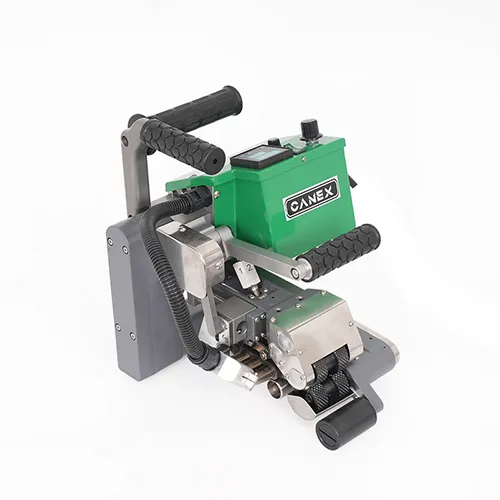

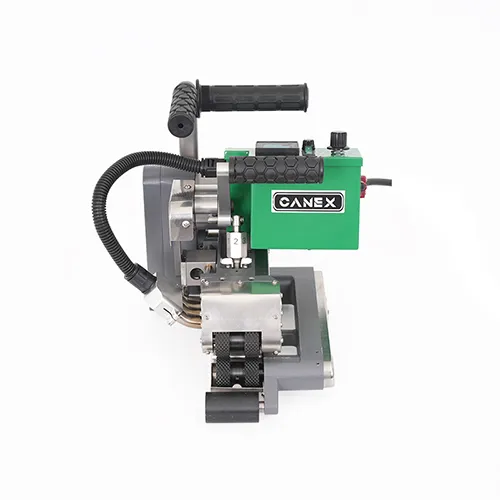

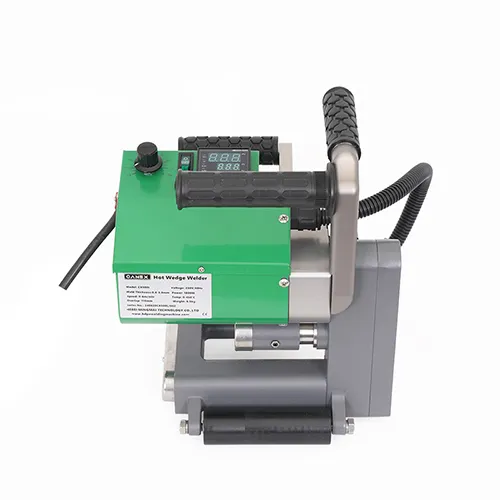

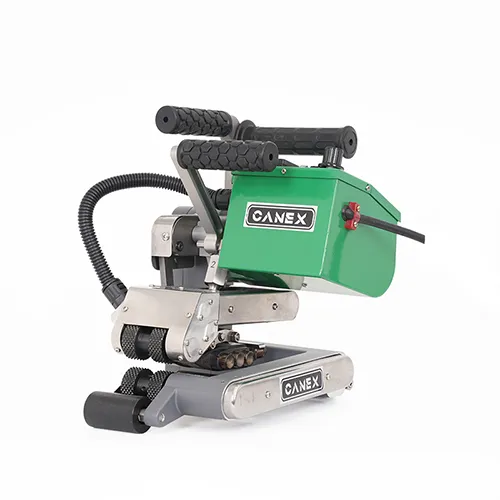

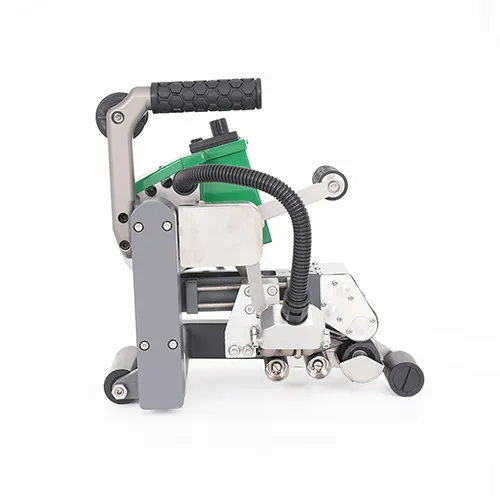

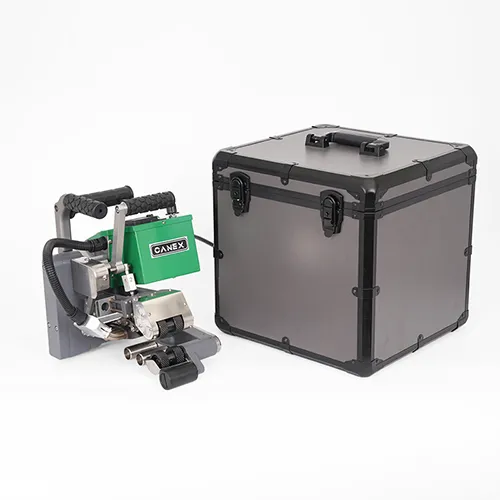

CX500L Hot Wedge Machine

The CX500L. is a dual purpose welding machine, allowing for single sided welding by feeding the geomembrane from the same side, typically used for capping biogas tanks and landfills. Additionally, it supports overlap welding, where the geomembrane can be fed from both sides (left and right).

পণ্যের বিবরণ

এখনই যোগাযোগ করুন

পণ্যের বিবরণ

আবেদন

In environmental protection projects such as landfills and sewage treatment pools, the CX500L can quickly complete large-area membrane welding to form a seamless anti-seepage layer that meets environmental protection standards. In mining projects such as tailings ponds, the equipment can weld thickened geomembranes to help protect the mine ecology. For circular fish ponds, reservoirs, etc., the CX500L is the perfect choice for welding circular geomembranes.

প্যারামিটার টেবিল

ইনপুট ভোল্টেজ	220V, 50Hz
ক্ষমতা	1800W
ঢালাই গতি	0-6m/min
Heating temperature	0-450℃
ঢালাই উপাদান বেধ	0.8mm-3.0mm
Welding seam width	15mm×2, inner cavity 16mm Welding seam strength ≥85% of original material (tensile strength in shear direction)
ওভারল্যাপ প্রস্থ	120mm
Net weight	9.5kg

পণ্যের বৈশিষ্ট্য

①Main Frame Design

The main frame is made of aviation aluminum.die-cast,and painted on the surface, which is light and strong.

②Precision Bearings

The bearing position and screw holes are CNC machined, using Japanese lKO needle roller bearings and German NSK deep groove ball bearings.

③Hot Wedge

Equipped with a copper hot wedge the thermal conductivity of copper is 4 times than that of brass. Copper has good viscosity and the fixing screws are not easy to loose.

④Guide Rail Part

The lower support rail is an eccentric wheel, the upper pressure wheel has a spring, and the guide rail is a copper sleeve stainless steel shaft with strong durability.

⑤Pressure Adjustment

The double handle design is ergonomic.and the pressure nut is equipped with ahigh-strength spring for easy adjustment.

⑥Adjustable Eccentric Wheel

Can be adjusted according to film thickness.

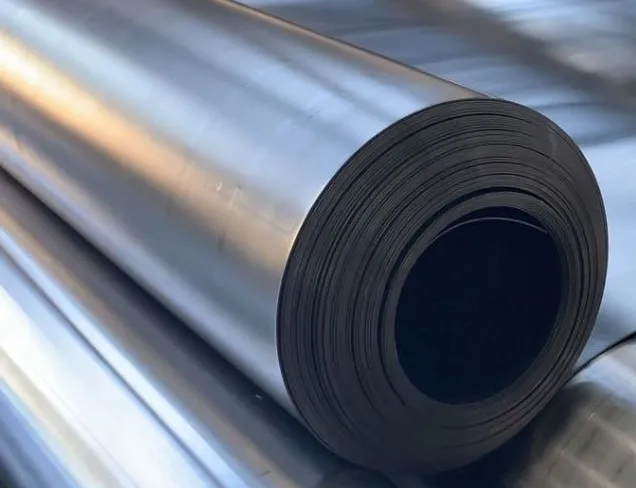

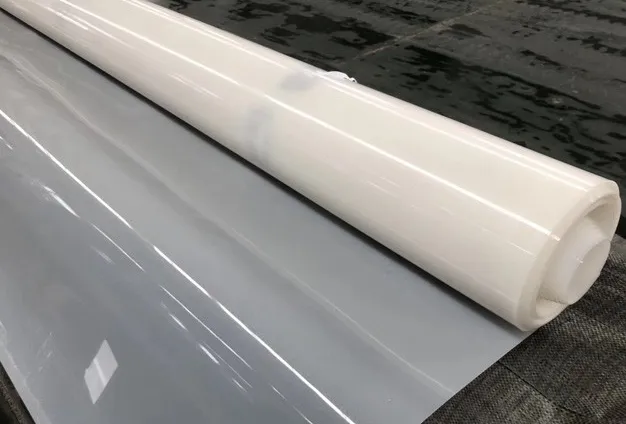

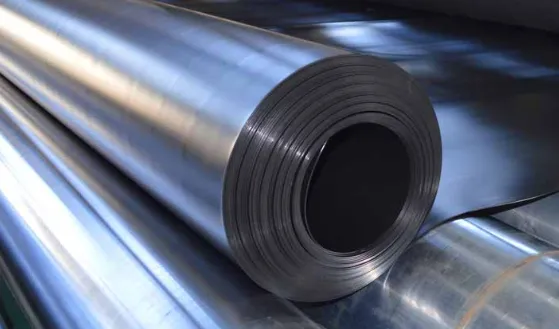

Weldable Materials
